Edwards (6ANN/B) Semi-flush annunciator wall box

The Edwards 6ANN/B is a six-position semi-flush annunciator wallbox for the EST3 fire-alarm and mass-notification platform. Specifically, it houses up to six display or control modules behind a single recessed door. As a result, you get a clean, low-profile remote operator station for lobbies, security desks, and command rooms.

First, the 6ANN/B mounts into the wall so only the door projects into the room. Then the inner cavity holds the 3-ANNCPU3 annunciator processor and up to six 3-ANNSM annunciator support modules. Therefore, you can mix LED display, switch/LED control, and LCD modules in one enclosure.

Built for Six-Position EST3 Annunciator Layouts

Furthermore, the 6ANN/B is designed around the EST3 6-position annunciator architecture. In addition, it pairs with the 3-6ANN base annunciator kit (CPU plus two 3-ANNSM modules and doors). As a result, the wallbox accepts a full EST3 display layout — LEDs, switches, and an optional 3-LCD or 3-LCDXL1 graphical display.

Also, the 6ANN/B carries slide-in label strips behind the door. Therefore, LEDs and switches can be designated for the local language or for site-specific point descriptions.

Construction

Specifically, the 6ANN/B is fabricated from 16-gauge cold-rolled steel. Then it is finished in gray textured enamel that complements most architectural interiors. As a result, the cabinet is rugged enough for corridor, lobby, and back-of-house mounting.

Dimensions and Weight

• Width: 14.5 in (36.8 cm)
• Height: 13.19 in (33.5 cm)
• In-wall depth: 12.1 in (30.7 cm)
• Projection from finished wall: 2.75 in (7.0 cm)
• Ship weight: 7.0 lb (3.2 kg)

Verified Features

• Six-position EST3 annunciator wallbox, semi-flush mount
• Houses 3-ANNCPU3 + up to six 3-ANNSM support modules

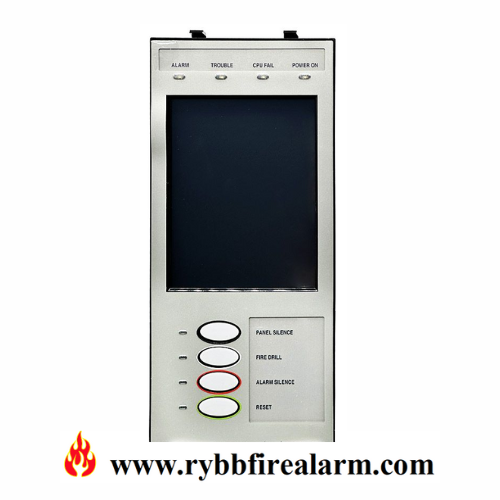

• Accepts 3-LCD or 3-LCDXL1 liquid-crystal display modules
• Compatible with all EST3 LED, switch/LED, and graphic display modules
• 16-gauge cold-rolled steel, gray textured enamel finish
• Slide-in labeling for LEDs and switches (multi-language ready)
• Companion surface-mount version: 6ANN/B-S

System-Level Listings

The 6ANN/B carries listings as part of the EST3 system. Specifically, EST3 holds UL, ULC, FM, and CE approvals at the panel level. In addition, EN54-2 and EN54-4 approvals are pending per the EST3 remote annunciator data sheet.

Order the Edwards 6ANN/B

However, semi-flush versus surface mount matters for wall preparation. Therefore, confirm the cut-out and back-box framing before ordering. To order the Edwards 6ANN/B, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
