ALTRONIX (EFLOW3NX4D) 12/24Vdc @ 2A, 4 Fuse, Fai Xl

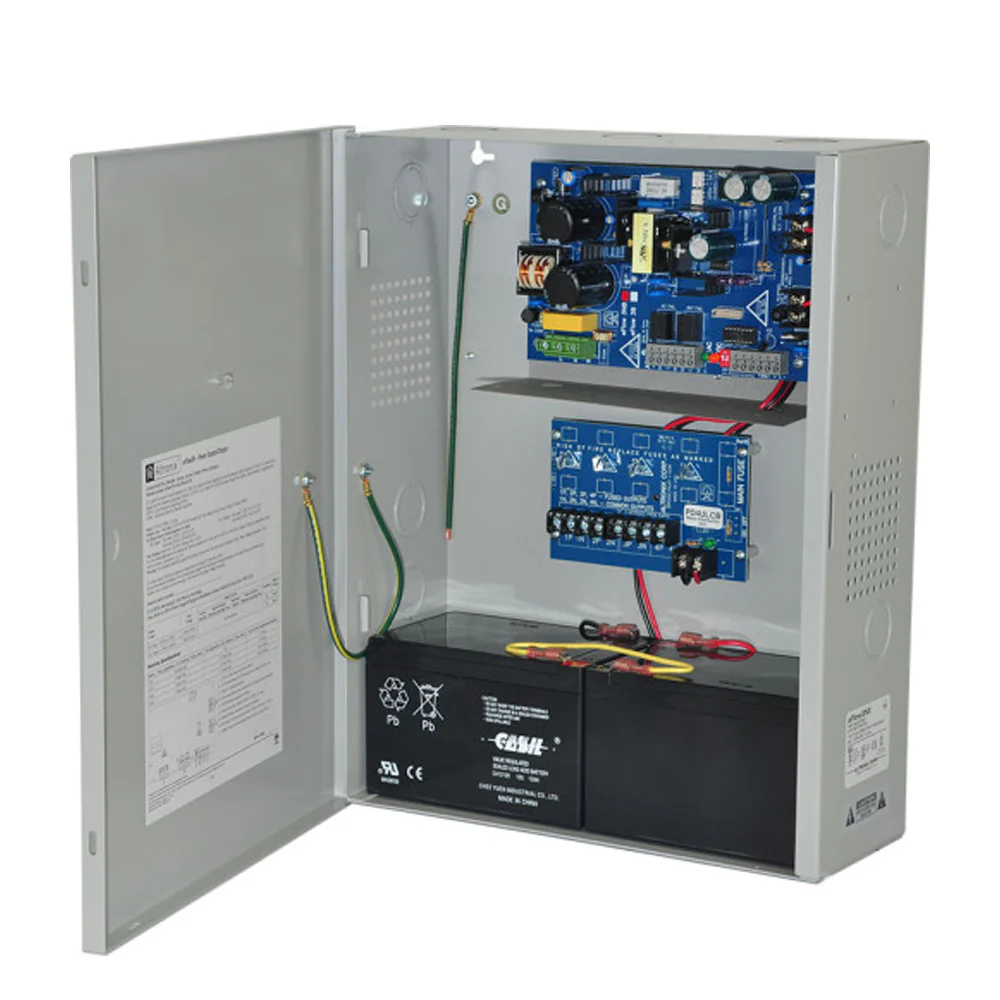

The Altronix EFLOW3NX4D is a UL 1481 listed power supply and charger for fire protective signaling systems. Specifically, it delivers four PTC-protected, Class 2 power-limited 12VDC or 24VDC outputs at 2 A continuous total.

First, the unit converts 120VAC, 60Hz mains into a selectable 12VDC or 24VDC bus. Then, that bus splits into four PTC-protected outputs for distribution. In addition, a built-in charger maintains the standby battery for fire-alarm hold-up. Therefore, the EFLOW3NX4D supports both day-to-day device loads and battery-backup duty.

Supervised Fire-Alarm Disconnect

Furthermore, the EFLOW3NX4D includes a supervised fire-alarm disconnect input. Specifically, the input accepts a normally-open or normally-closed trigger from the host fire panel. It can also be configured for latching or non-latching operation. As a result, the supply cuts power to non-essential loads (door strikes, mag-locks) when the FACP signals an alarm. A 10K end-of-line resistor supervises the trigger circuit for break monitoring.

Altronix EFLOW3NX4D — Verified Specifications

• Input: 120VAC, 60Hz, 3.5 A max
• Output: 12VDC or 24VDC selectable; 2 A continuous total
• Outputs: four (4) Class 2 power-limited, fuse or PTC protected
• Fire-alarm disconnect: supervised, NO or NC trigger, latching or non-latching, 10K EOL
• Additional protections: overvoltage protection and low-power disconnect to prevent deep-discharge of batteries
• Supervision: AC-fail (Form C); battery-fail and battery-presence (Form C)
• Enclosure: 12.25″ W × 15.5″ H × 4.5″ D (311 × 394 × 114 mm)
• Listings: UL 294 (Access Control); UL 1481 (Power Supplies for Fire Protective Signaling)
