The Edwards QSA-1-S is a surface-mount remote annunciator wallbox for the QuickStart fire alarm system. First, the cabinet holds one SL30 display module. Then it interfaces back to a host QSC, QS1, or QS4 panel over an RS-485 data riser.
Importantly, the QSA-1-S is not a control panel. Specifically, it is the enclosure plus interface assembly that lets a building install a remote LCD annunciator away from the main FACP. As a result, lobby and corridor mounting positions become possible without relocating the host panel.
Decoded part number
The “S” suffix indicates Surface mount. Alternatively, the “F” suffix on the sibling QSA-1-F denotes Flush mount with a trim ring.
Verified specs
- Cabinet dimensions: 7.6″ H x 14.25″ W x 2.9″ D (19.46 x 36.20 x 7.3 cm).
- Ship weight: 4.0 lb (1.81 kg).
- Power: 24 VDC from the host panel’s PS6 supply, or from a listed external 24 VDC source.
- QSC-CPU current draw as a remote annunciator: 105 mA standby / 123 mA alarm.
- Communication: RS-485 data riser, Class B standard. In addition, Class A requires the NT-A card in the host panel.
- System capacity: up to 8 remote annunciators per QSC panel.
- Required to function: one SL30 display module plus a QSC-CPU-1 or QSC-CPU-2 (sold separately).

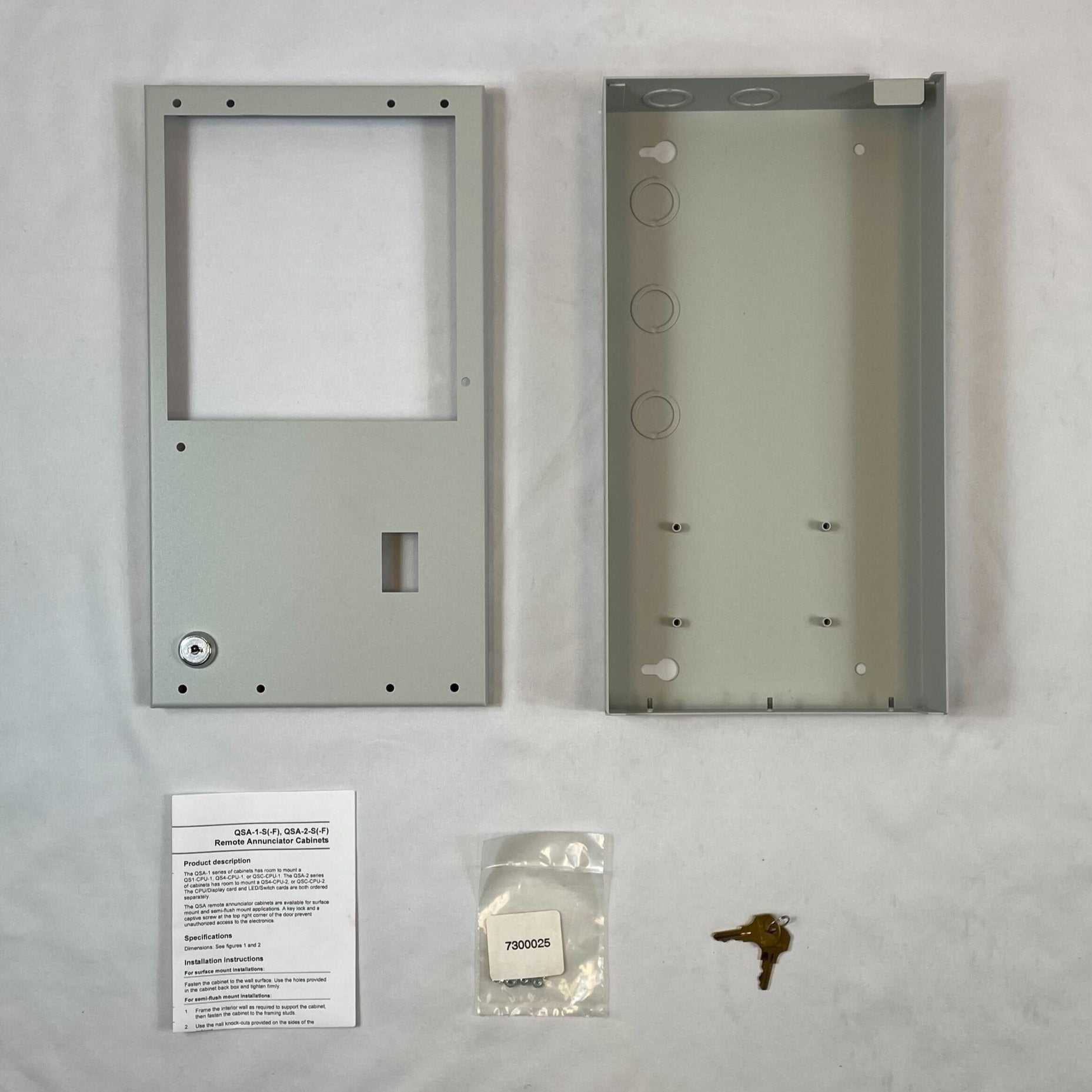

What ships in the box
The QSA-1-S includes the surface-mount cabinet and the interface assembly. However, it does not include the SL30 display or the CPU. Therefore, plan the bill of materials accordingly when quoting a job.
Compliance
Per the parent QSC datasheet, the platform is ULC-S527-99 compliant and MEA listed.
Authoritative source: Edwards data sheet 85005-0112, QSC Conventional Life Safety Control Panel (Issue 6), remote annunciator section.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 20 × 9 × 6 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Annunciator |
