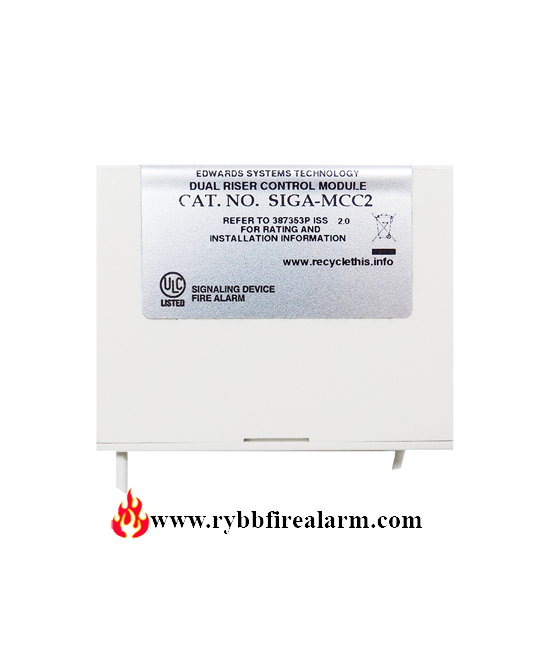

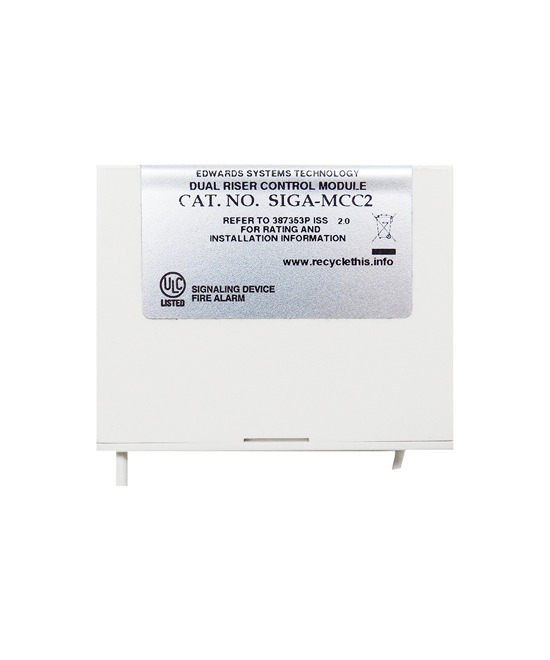

The Edwards SIGA-MCC2 Dual Input Signal Module is a Signature Series intelligent output module. Specifically, it switches one of two power risers to a single supervised Class B output circuit. As a result, technicians can drive notification appliances, audio speaker circuits, or telephone circuits from the SLC.
This is the UIO plug-in version of the SIGA-CC2 standalone module. Therefore, the MCC2 requires a UIO motherboard. It is not box-mounted on its own.
What “dual input signal” means
The two “inputs” are power risers feeding the module. First, the loop controller selects which riser to route to the output. Then the module supervises the output for opens and shorts.
Supported riser types include 24 VDC polarized signal power, 25 V audio evac, 70 V audio evac, and telephone audio. Therefore, the MCC2 covers most Signature notification output scenarios.
Verified loop function
- Type code 51 (factory-set).
- Personality Code 7 (factory-set for dual riser).
- Uses two module addresses on the SLC.
- LEDs: green polled, red active.
Verified electrical specs
- Operating voltage: 15.2 to 19.95 VDC (19 VDC nominal) from the loop controller.
- Standby current: 223 µA.
- Activated current: 100 µA.
- Output rating: 2 A @ 24 VDC.
- Audio output: 50 W @ 25 V; alternatively, 35 W @ 70 V.
- Wire size: #12 to #18 AWG.
- Construction: high-impact engineering polymer.
- Operating temperature: 32 to 120 °F.
- Humidity: 0 to 93% RH, non-condensing.
- Ship weight: 0.18 lb.
Mounting
The MCC2 plugs into a SIGA-UIO2R, UIO6R, or UIO6 motherboard. Importantly, technicians installing in a standalone backbox should specify the SIGA-CC2 instead.
Panel compatibility and listings
The MCC2 works with Edwards Signature Loop Controllers. Furthermore, the module carries UL, ULC, CSFM, MEA, and FM listings per the datasheet.
Authoritative source: Edwards data sheet E85001-0237 Issue 1, dated 2017-12-22, SIGA-CC1 / CC2 / MCC1 / MCC2 family.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Relay Module |
