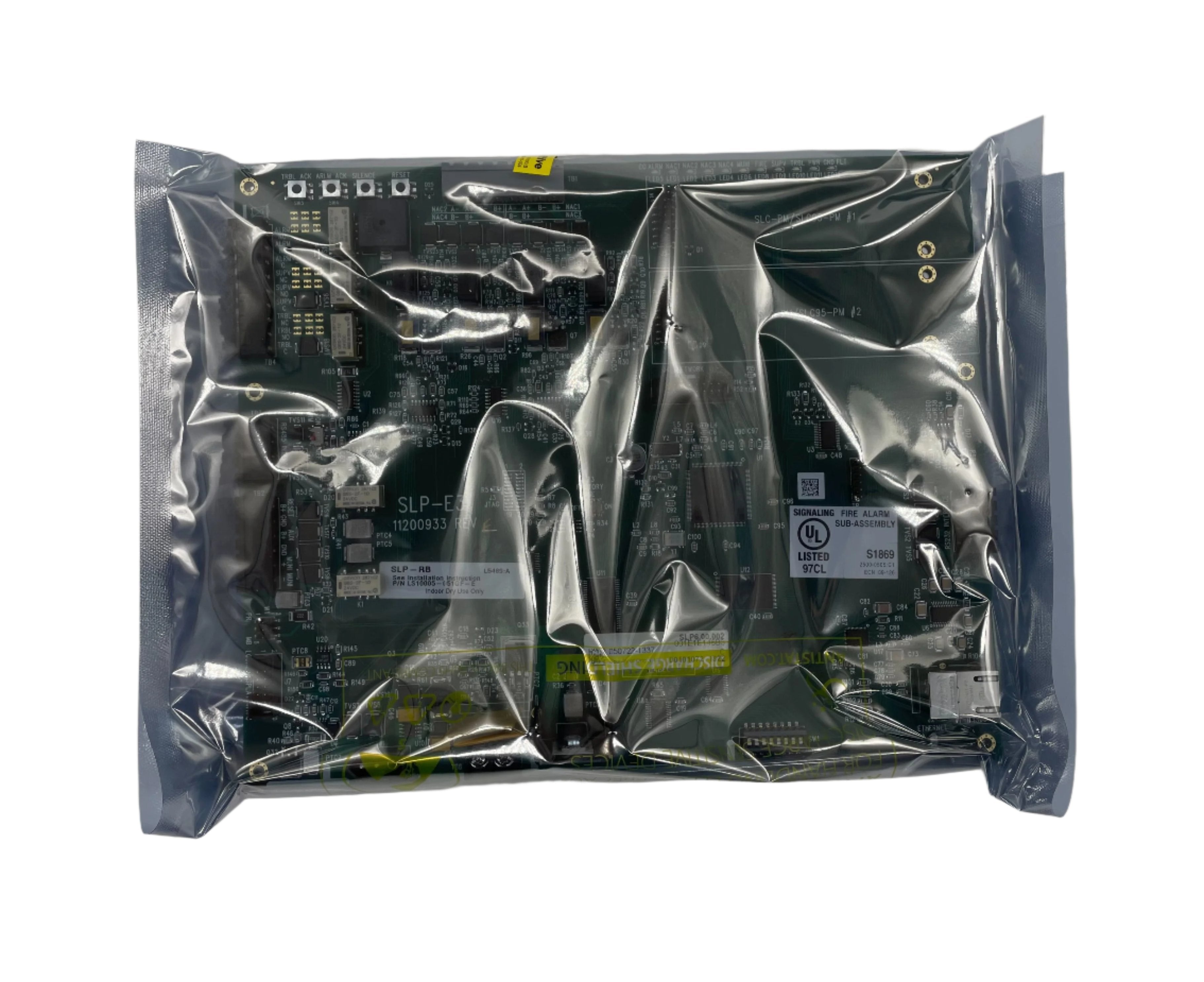

The Gamewell SLP-RB is the replacement motherboard for the Smart Loop Panel (SLP) in the Gamewell-FCI S3 Series. It is the part you order when an existing S3 panel’s main board needs to be swapped — typically as part of a service replacement or a retrofit upgrade. First, the technician transfers the loop personality card, display, and power supply to the new board. Then the panel comes back online. As a result, the building’s S3 fire alarm system stays in service without a full panel replacement.
What the SLP-RB Provides

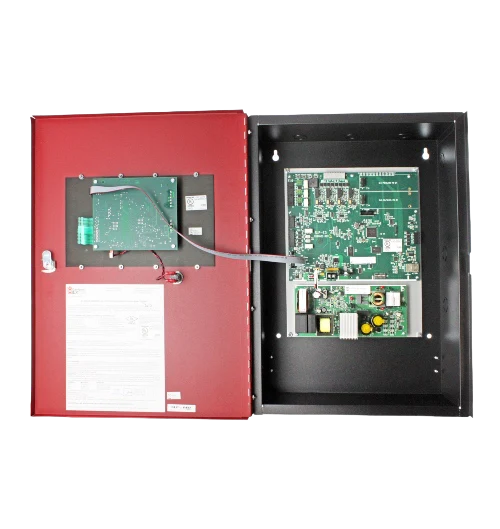

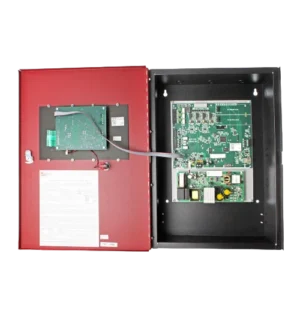

The SLP main board is the digital, microprocessor-based heart of the S3 Series intelligent fire alarm control panel. It supports the following capabilities once paired with the appropriate loop card and power supply:
- One SLC loop, expandable to two — Class A or Class B (Style 4, 6, or 7)
- System Sensor protocol: up to 318 devices per loop (636 with two loops)
- Apollo protocol: up to 126 devices per loop (252 with two loops)
- Four Class B (or two Class A) Notification Appliance Circuits — 2.0 A each, 6.0 A total
- Selectable strobe sync: System Sensor, Cooper-Wheelock®, or Gentex™
- Three Form-C relay contacts: Alarm, Trouble, Supervisory — 2 A @ 24 VDC resistive
- Built-in Ethernet port for FocalPoint® Workstation and programming
- RS-485 for the DACT-E3 dialer
- Auto-EOL (EEOL): adjusts to any field EOL resistor from 1 kΩ to 55 kΩ
- TimeCap: holds date/time up to 48 hours without power or battery
Verified System Specifications (S3 Series Datasheet 9021-60730)
- SLC loop voltage: 24 V peak-to-peak
- NAC operating voltage: 24 VDC (minimum 19.5 VDC @ 20.4 V battery)
- Aux power (resettable): Two circuits, 24 VDC, 1.75 A total
- Base panel standby current: 0.111 A
- Base panel alarm current: 0.243 A
- Battery charger: +24 VDC, up to 55 A/H batteries (cabinet accommodates 12 A/H)
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 93% RH non-condensing
What You Need Alongside the SLP-RB
- SLC-PM (System Sensor loop card) or SLC95-PM (Apollo loop card) — choose one per loop
- FLPS-7-RB — replacement 120 VAC 7 A power supply (or 240 VAC variant for the SLP-RED-G chassis)
- LCD-SLP — color touchscreen display
Networking
The SLP can run standalone or as a node in a high-speed 625 K baud ARCNET network. In addition, the network supports up to 122 nodes when used with the S3 Series or E3 Series panels — or up to 64 nodes when used with 7100 Series — via twisted-pair or fiber-optic media.
Listings
- UL 864 9th Edition
- UL Listed: S1869
- FM Approved
- MEA FDNY: COA 6162
- CSFM: 7165-1703:0176
- City of Chicago Approved: Class 1
- VMA Reference Cert: 45894-02C
- IBC Seismic Certified
Order the Gamewell SLP-RB from Life Safety Consultants
Specify the SLP-RB for S3 Series Smart Loop Panel main-board replacement or for retrofit upgrades from legacy FCI 7100 or Gamewell 602 Series panels via the SLP-RETROFIT kit. Life Safety Consultants stocks the SLP-RB alongside the matching FLPS-7-RB power supply, SLC-PM and SLC95-PM loop cards, and LCD-SLP display.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 13 × 10 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Monitor Module |
