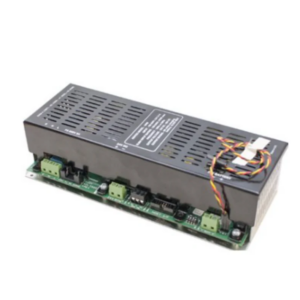

The Hochiki LA-S408 is a 10.25-amp auto-sensing power supply for the FireNET L@titude addressable fire alarm control panel. Specifically, it accepts either 115 VAC or 230 VAC input with no jumper change required. As a result, the same SKU ships worldwide for both North American and international installations.
Verified Specifications
- Output: 10.25 Amps at 24 VDC for the L@titude panel and auxiliary loads
- Input: 115 VAC or 230 VAC, auto-sensing (no jumper required)
- AC branch circuit requirement: 15 Amp dedicated branch
- Designed exclusively for the Hochiki FireNET L@titude panel chassis
- Auto-detect feature compensates for 115 VAC or 230 VAC input
- Product code: 0101-02710
Compatible Panel
The LA-S408 is intended for the Hochiki FireNET L@titude analog addressable fire alarm control panel. Specifically, it is part of the Latitude chassis assembly. Therefore, it is not a general-purpose remote NAC power supply and not interchangeable with non-Latitude Hochiki panels.
Comparison to the LA-S406
The Latitude line also offers the LA-S406, which is a 5.25-amp power supply. Unlike the LA-S406, the LA-S408 does not require a jumper to switch between 115 VAC and 230 VAC. Instead, the LA-S408 detects input voltage automatically. As a result, specifying the LA-S408 simplifies international and dual-voltage installations.
Installer Notes
Provide AC power to the LA-S408 terminal block from a 15 Amp dedicated branch circuit. Refer to the FireNET L@titude Installation Manual (MAN-1431HA) for full wiring, battery sizing, and supervision procedures. Furthermore, the L@titude system supports both 5.25 A (LA-S406) and 10.25 A (LA-S408) power supplies.
Order or Get Application Help
Life Safety Consultants has stocked Hochiki Latitude system components since the line launched. To order the Hochiki LA-S408 or check whether your panel needs 5.25 A or 10.25 A capacity, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 14 × 11.5 × 4 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Power Supply |
