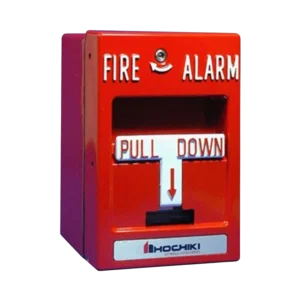

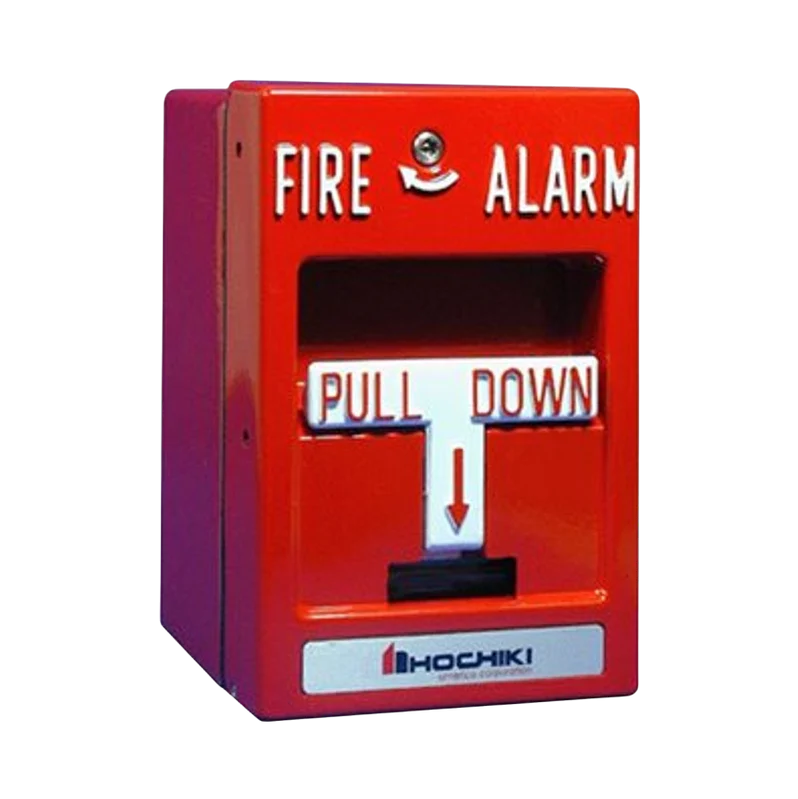

The Hochiki HPS-SAH-WP is a weatherproof single-action manual pull station. First, it consists of a die-cast aluminum back box, a neoprene sealing gasket, and a special manual fire alarm box. As a result, it stands up to wet outdoor conditions where a standard indoor station would fail.
Furthermore, the station has a latching pull-down lever that requires a hex key to reset. Therefore, only authorized personnel can reset it, which helps the responding tech trace the origin of the alarm.
Hochiki HPS-SAH-WP Key Features
- UL Listed weatherproof single-action manual pull station
- Die-cast aluminum back box with neoprene sealing gasket
- Pre-painted or plated surfaces to inhibit corrosion
- Nontoxic-material construction with low profile and rounded edges
- Latching pull-down lever
- Hex key reset
- Screw terminal connections
- One set of Normally Open contacts, suitable for large current loads
- ADA compliant
Specifications
- Contact: (1) Form A, Normally Open
- Contact rating: 10 A @ 120 VAC
- Operating temperature: -30°F to 150°F (-35°C to 66°C)
- Listings: UL Listed, CSFM 7150-0410:162, S6512
Order or Get Application Help
For pricing or panel-compatibility help on the Hochiki HPS-SAH-WP, call Life Safety Consultants at 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 6 × 5 × 5 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Pull Station |
