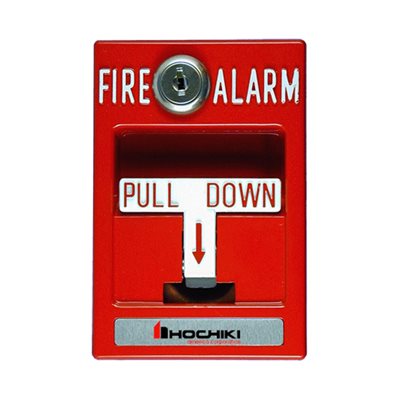

The Hochiki HPS-SAK CAT 30 is a single-action manual pull station for conventional fire alarm systems. It includes a glass rod and uses the CAT 30 key for reset access.
First, the housing uses solid die-cast metal in glossy red. Then a plated-steel back switch plate carries the enclosed alarm switch. As a result, the HPS-SAK delivers a tamper-resistant, code-compliant pull station for commercial buildings.
How the HPS-SAK CAT 30 Operates
The pull station works on a single-action mechanism. Specifically, one pull-down motion breaks the glass rod and trips the alarm switch. In addition, the switch carries an SPST normally-open contact rated for 10 Amps at 120 VAC.
Furthermore, every connection routes through a screw-terminal block on the back plate. Therefore, field wiring is straightforward for installers familiar with conventional initiating circuits.
Reset, Key Access, and Glass Rod
The HPS-SAK ships with the CAT 30 key included. Authorized personnel use the key to unlock the front cover for reset and testing. Also, a fresh glass rod ships in the box. As a result, the device is ready to install out of the carton.
Additionally, replacement glass rods are available separately. For longer key-pull cycles, order spare CAT 30 key sets to keep on hand.
Specifications
- Type: Single-action manual pull station with key reset
- Housing: Solid die-cast metal, glossy red finish
- Back switch plate: Plated steel
- Switch contact: SPST normally open, 10 A @ 120 VAC
- Wiring: Screw terminal block
- Key: CAT 30 (included)
- Glass rod: Included
- Listings: UL Listed, CSFM Listed
- Origin: Made in USA
Common Applications
Specifically, the HPS-SAK fits conventional fire alarm panels used in commercial, institutional, and industrial buildings. For example, offices, schools, light manufacturing, and retail spaces all use single-action pull stations like this one. However, sites that need an explosion-proof or weather-resistant station should look at the HPS-SAK-EX/WP instead.
Order the Hochiki HPS-SAK CAT 30
Life Safety Consultants stocks the Hochiki HPS-SAK CAT 30 alongside spare CAT 30 keys, replacement glass rods, and other HPS-series pull stations. To order or check panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 5 × 4.5 × 3 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Detector Base |
