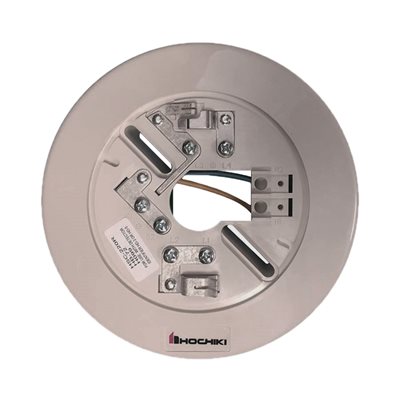

The Hochiki HSC-220R is a 6-inch conventional relay base for 2-wire fire alarm circuits. It runs on 24 VDC and provides two sets of Form “C” auxiliary relay contacts.
First, the base mounts a compatible Hochiki conventional detector head. Then on alarm, the integrated relays change state. As a result, you can drive door holders, dampers, or auxiliary annunciation.
How the Hochiki HSC-220R Operates
The relays are voltage-free Form “C” pigtail leads. Specifically, contact ratings are 2 A at 30 VDC or 1 A at 120 VAC. Therefore, the relays can interface low-voltage auxiliary loads directly.
In addition, the base sits on a 4-inch octagonal or 4-inch square electrical box. Furthermore, listed end-of-line devices supervise the initiating circuit from the panel side.
Electrical Specifications
- Operating voltage: 24 VDC
- Alarm current: 88 mA (98 mA at 26.5 V max)
- Compatibility ID: HB-72
- Wiring: 2-wire
- Auxiliary relays: 2 sets of Form “C” pigtail contacts
- Relay contact ratings: 2 A @ 30 VDC, 1 A @ 120 VAC
- Base diameter: 6 inches
- Box mounting: 4-inch octagonal or 4-inch square
- Listings: UL Listed, CSFM 7300-0410-0132
Compatible Detector Heads
Also, the HSC-220R works with Hochiki conventional models SOC-24V, SOC-24VN, SLR-24H, SLR-24V, SLV-24, SLV-24N, SLV-24V, SLR-835, SLR-835H, and DCD-135/190. However, always verify panel compatibility before installation.
Order the Hochiki HSC-220R
Life Safety Consultants stocks the Hochiki HSC-220R alongside compatible detector heads and accessories. To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
