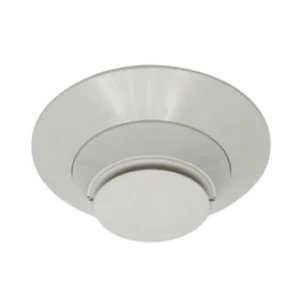

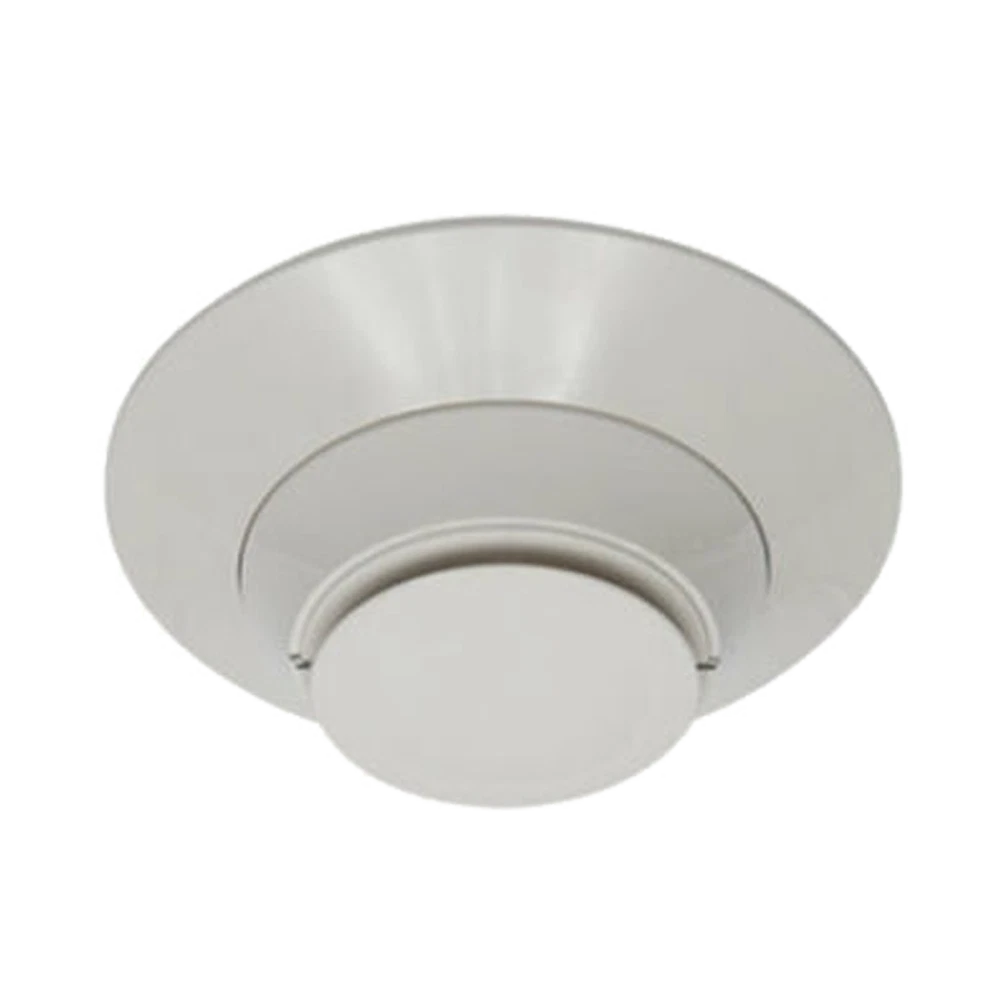

The Farenhyt IDP-PHOTO-R-IV is a sophisticated intelligent photoelectric smoke detector engineered for advanced fire detection in complex commercial environments. Designed specifically for integration with addressable fire alarm systems, this ivory-colored detector offers precise smoke sensing capabilities with robust remote testing functionality, making it ideal for challenging installation scenarios such as HVAC ductwork and large-scale facility monitoring.
Compatible with Farenhyt intelligent fire alarm panels, this photoelectric detector utilizes advanced optical sensing technology to distinguish between genuine fire conditions and nuisance alarms. Its intelligent design allows for sophisticated signal processing that minimizes false triggers while maintaining exceptional sensitivity to developing fire conditions, particularly in environments with potential particulate variations.
Key Features
- Intelligent addressable photoelectric sensing technology with digital signal processing
- Remote test capability enables comprehensive diagnostics without physical access to detector
- Low-profile ivory housing designed for seamless architectural integration
- Compatible with standard 4-inch mounting bases and addressable fire alarm control panels
- UL 268 and UL 464 listed for comprehensive compliance with fire safety standards
- Optimized for HVAC and commercial facility applications with complex environmental conditions
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: < 250 µA
- Alarm Current: 5-7 mA
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
- Dimensions: 6.0″ diameter, 2.0″ height
This detector meets comprehensive fire safety standards including NFPA 72 requirements for intelligent detection systems. Recommended for installation in commercial facilities such as office complexes, healthcare environments, educational institutions, and industrial settings where precise smoke detection is critical for life safety and asset protection.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Photoelectric Smoke Detector |
