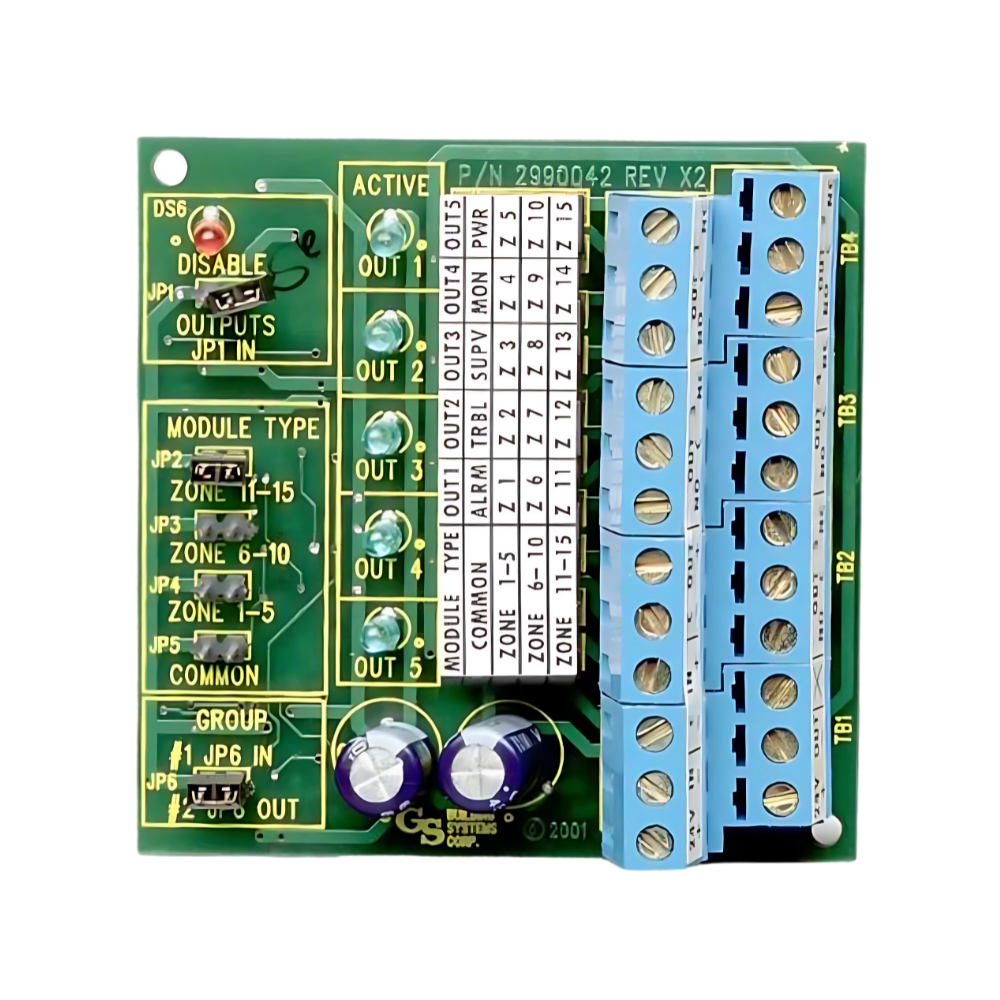

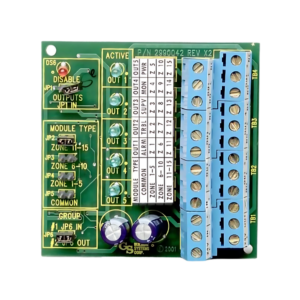

The KIDDE COMMERCIAL FSRRM24 is a remote relay module for F-series and FX-series conventional fire alarm control panels. Specifically, it provides five Form C relays in a single module.
First, each of the five relays is jumper-configured as common, zone, or programmable. Then, each output is independently set as a dry contact or as a +24 VDC source. As a result, one SKU covers many integration scenarios with HVAC, elevators, doors, and ancillary systems.
In addition, an LED on each relay shows when it is energized. Furthermore, a separate LED indicates when the module is disabled via the disable-output jumper.
Key Features of the KIDDE COMMERCIAL FSRRM24 Remote Relay Module
- Five Form C relays in one module
- Jumper-selectable relay function: common, zone (1-5 or 6-10), or programmable
- Each relay individually set as dry contact OR +24 VDC output
- Disable-output jumper for module-wide disable
- Peripheral group select jumper (group 1 or group 2)
- Per-relay status LEDs plus disabled-state LED
- Supervised and power-limited wiring throughout
- Plastic snap track included for mounting inside an MFC-A enclosure
- For use with Kidde/Edwards F-series and FX-series conventional fire alarm panels
Specifications
- Operating voltage: 18.8 to 27.3 VDC
- Standby current: 10 mA (zone relay operation); 26 mA (common relay operation)
- Alarm current: 70 mA
- Circuit capacitance: 0.03 µF max.
- Circuit resistance: 13 Ω max.
- Ground fault impedance: 0 Ω
- Relay quantity: 5
- Relay style: Form C
- Contact rating: 30 VDC at 1 A (resistive load)
- Wire size: 12 to 18 AWG (0.75 to 2.5 mm²)
- Mounting: MFC-A cabinet via included snap track
- Operating temperature: 0 to 49°C (32 to 120°F)
- Operating humidity: 0 to 93% RH, noncondensing at 32°C (90°F)
- Documented in installation sheet P/N 3101058 REV 1.0
Module Quantity Rules
First, only two FSRRM24 modules are allowed per MFC-A cabinet. In addition, only three FSRRM24 modules are allowed per peripheral group on 3-zone and 5-zone panels. However, up to four FSRRM24 modules are allowed per peripheral group on 10-zone panels. Furthermore, only one common-relay FSRRM24 is allowed per peripheral group.
Power Notes
First, AUX power from the control panel must not exceed 0.5 A. As a result, larger loads require a UL/ULC-listed regulated 24 VDC auxiliary or booster supply for fire protective signaling. In addition, an external supply must sit in the same room as the panel with their 24 VDC commons tied together.
