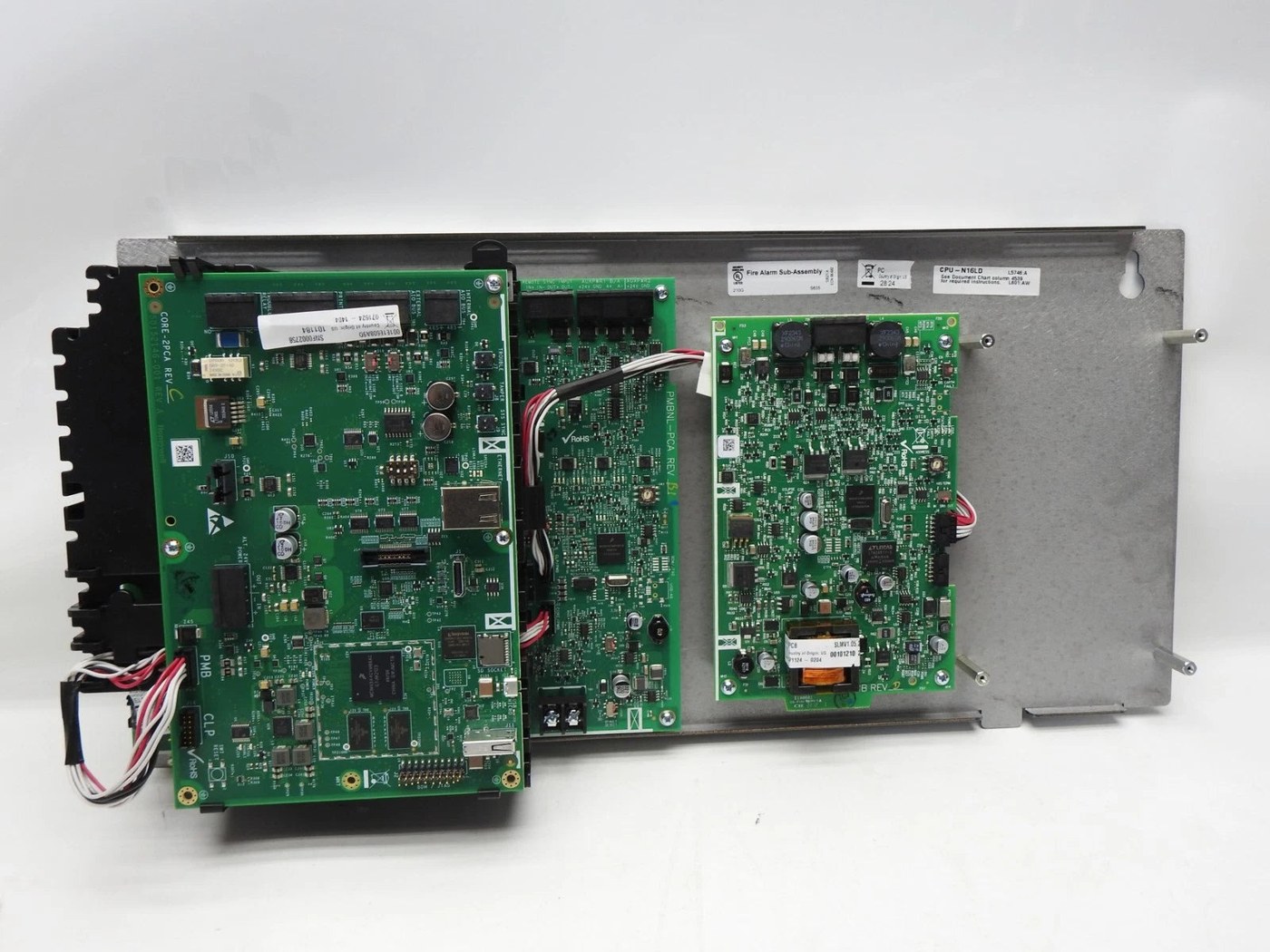

The NOTIFIER (CPU-N16LD) Intelligent Fire Alarm Control Panel represents an advanced networked solution for comprehensive fire detection and notification systems in complex commercial and institutional environments. Designed for robust performance in mission-critical applications, this intelligent panel provides sophisticated monitoring and emergency response capabilities across single or multi-zone fire protection infrastructures.
Engineered for professional installers and facilities managers requiring high-reliability fire detection technology, the CPU-N16LD delivers sophisticated signal line circuit (SLC) loop management with integrated intelligent communication protocols. Its architecture supports addressable device integration, enabling precise event tracking and granular system diagnostics across large-scale commercial installations such as office complexes, healthcare facilities, educational campuses, and high-rise commercial buildings.
Key Features
- Single SLC loop supporting up to 159 intelligent addressable devices with comprehensive device status monitoring
- 10″ high-resolution touchscreen display providing intuitive system programming and real-time event visualization
- Four (4) fully configurable Notification Appliance Circuits (NACs) with synchronized and non-synchronized signaling options
- Built-in power supply with battery charging capabilities compatible with standard 24VDC fire alarm circuits
- Fully compatible with NOTIFIER network architecture for seamless system expansion and integration
- Compliant with NFPA 72, UL 268, and UL 464 safety and performance standards
Technical Specifications
- Operating Voltage: 120VAC primary, 24VDC secondary
- Power Output: 6.0A max supervised power supply
- Ambient Temperature Range: 32°F to 120°F (0°C to 49°C)
- Panel Dimensions: Chassis mountable for standard CAB-5 Series cabinet
- Communication Protocol: CLIP (Communication Line Interface Protocol)
Ideal for professional fire alarm technicians and system integrators requiring advanced, reliable fire detection infrastructure, the NOTIFIER CPU-N16LD provides a comprehensive solution for intelligent emergency notification and monitoring across diverse commercial applications.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 20 × 10.5 × 7.5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Power Supply |
