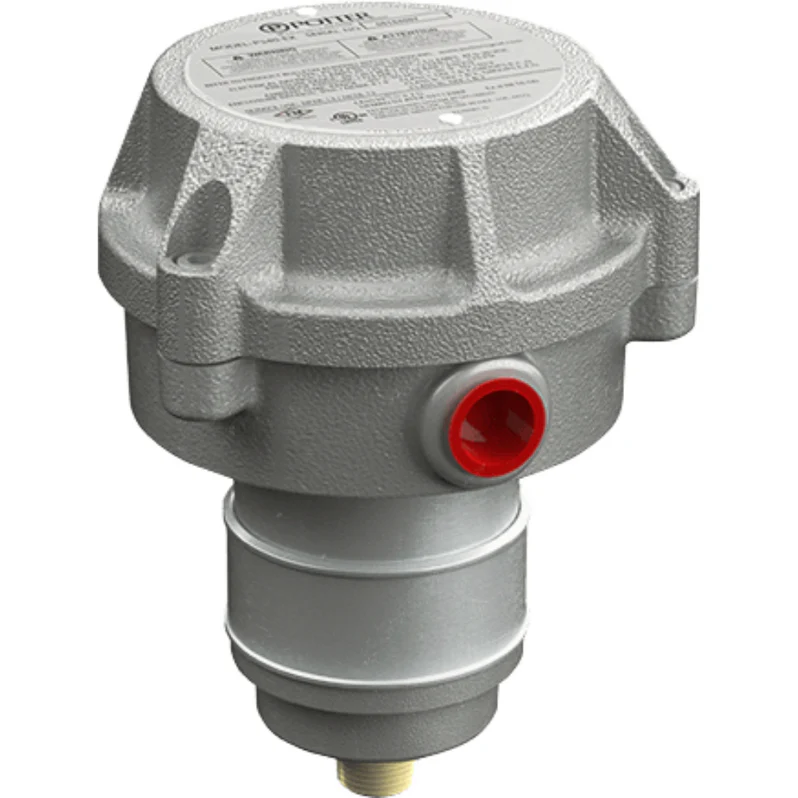

The POTTER PS-10-EX is an explosion-proof supervisory pressure switch for fire sprinkler systems in hazardous locations. It detects waterflow conditions on wet-pipe, dry, preaction, and deluge valves. In addition, the unit can serve as a low-pressure supervisory device. As a result, one device covers both waterflow alarm and supervisory functions.
POTTER PS-10-EX Hazardous Location Ratings
The PS-10-EX is rated for Class I Division 1 Groups B, C, and D atmospheres. Furthermore, it covers Class II Division 1 Groups E, F, and G dust environments. Also, the listing includes Class III Division 1. The enclosure carries IP66 and NEMA 4 / 9 ratings. Therefore, the unit suits refineries, chemical plants, grain handling, and other hazardous locations.
Specifically, the device is CENELEC, ATEX, IECEx, UL, cUL, FM, and CE Marked. The cover incorporates a tamper-resistant fastener that requires a special key.
Pressure Range and Adjustment
The two SPDT switches operate over a 4–20 PSI adjustable range. The factory setting is 6 ± 1 PSI on pressure increase. In addition, each switch adjusts independently of the other. As a result, one switch can monitor high air and the other low air on a dry system.
Key Features
- Explosion-proof solid cast aluminum enclosure
- Two independently adjustable SPDT (Form C) switches
- Brass 1/2″ NPT male pressure connection
- 1/2″ NPT female conduit entrance (use Ex sealing device)
- Field-adjustable, no tools required for pressure setting
- Weatherproof, IP66 / NEMA 4 and 9
- Cover tamper-resistant with supplied special key
Specifications (per Potter datasheet 5400982 Rev CC 1/18)
- Stock No.: 1350102
- Dimensions: 6″ Diameter × 7″ Height
- Factory Setting: 41 ± 7 kPa / 6 ± 1 PSI (on pressure increase)
- Adjustable Range: 27–137 kPa / 4–20 PSI
- Max System Pressure: 2068 kPa / 300 PSI
- Contact Rating: 15.0 A at 125/250 VAC; 2.0 A at 30 VDC
- Operating Temperature: –40°C to 60°C (–40°F to 140°F)
- Enclosure: IP66 / NEMA 4 and 9; cast aluminum
- Hazardous Location: Class I Div 1 Grp B/C/D; Class II Div 1 Grp E/F/G; Class III Div 1
- Listings: UL, cUL, FM, ATEX, IECEx, CENELEC, CE Marked
- Service: NFPA 13, 13D, 13R, 72
Order the POTTER PS-10-EX
Life Safety Consultants stocks the POTTER PS-10-EX alongside compatible BVL bleeder valves and tamper accessories. To order or confirm hazardous-area suitability, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4.8 lbs |
|---|---|
| Dimensions | 8 × 6 × 6 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
