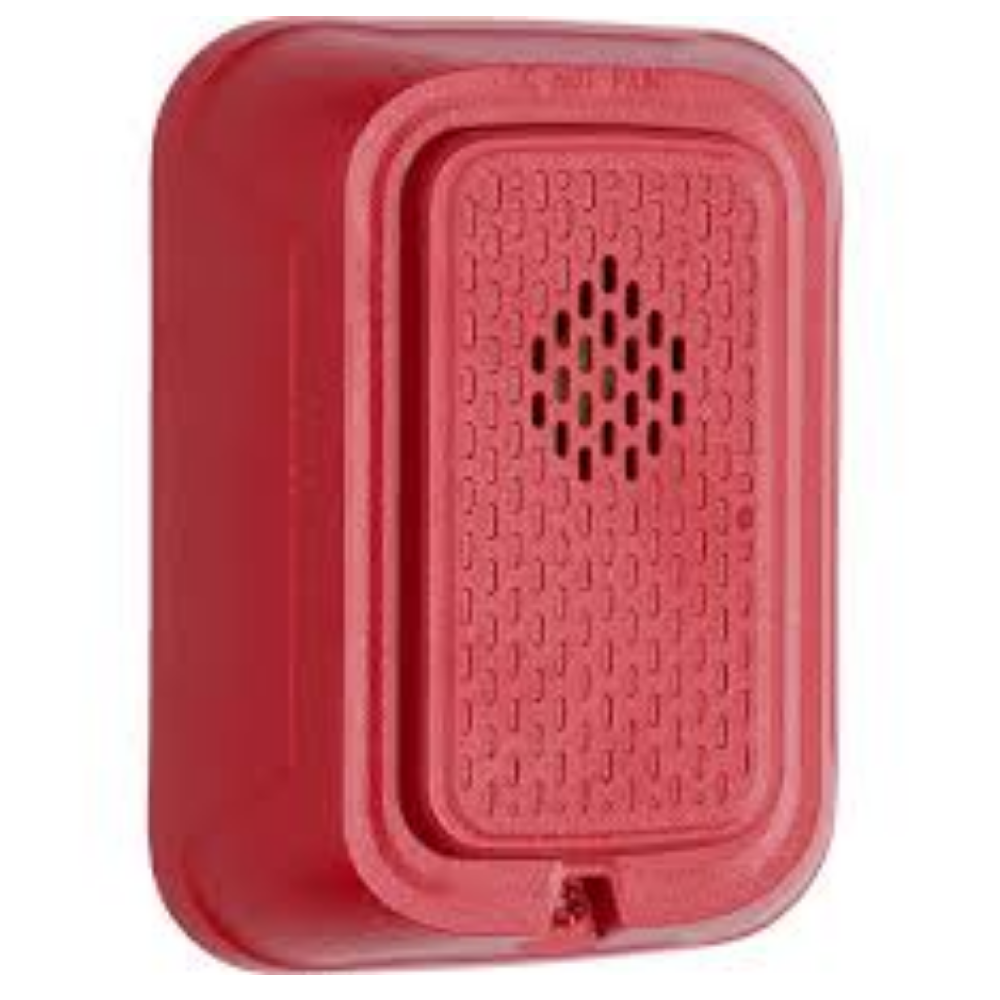

The System Sensor CHRL is a red, wall-mount chime from the L-Series notification line. First, it delivers an audible chime tone for fire alarm signaling. Specifically, the L-Series chimes are built for private-mode use. As a result, they alert trained staff to investigate a possible emergency. In addition, the red housing suits standard commercial and institutional installations.
System Sensor CHRL key features
- Wall-mount chime in red, part of the System Sensor L-Series.
- Designed for private-mode audible notification.
- Listed to UL 464 for audible signal appliances.
- Runs on a nominal 12 or 24 volts with a Sync-Circuit Module.
- Mounts to standard 4-inch square, 4-inch octagon, single-gang, or double-gang back boxes.
Voltage and mounting
The CHRL operates on 12 or 24 volts nominal. Therefore, 12-volt outputs run between 8.5 and 17.5 volts. Likewise, 24-volt outputs run between 16.5 and 33 volts. Also, it fits common back boxes for flexible placement.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 7 × 5.5 × 2.8 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Strobe |
