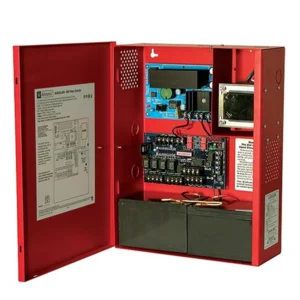

The Altronix AL602ULADA is a UL 864 listed NAC power extender for fire alarm systems. Specifically, it provides up to four supervised 24V notification appliance circuits driven from a single FACP trigger.
First, connect the AL602ULADA to any 24V fire alarm control panel via the FACP trigger input. Then, the extender delivers electronically regulated 24V power to your strobes, horns, or chimes. In addition, each NAC output can run Class B (Style W, X, Y) or Class A (Style Z) loops. Each output is rated 2.5 A maximum, with 6.5 A total continuous supply current. Therefore, the AL602ULADA expands NAC capacity for large ADA-compliant signaling installations.
Sync and Coding Options
Each of the four NAC outputs can be programmed independently. Specifically, choose Steady, Temporal Code 3, or strobe-synchronization output per circuit. As a result, the AL602ULADA pairs cleanly with major sync protocols supported by Altronix.
Altronix AL602ULADA — Verified Specifications
- Input: 115VAC, 60Hz
- Output: 24VDC filtered and regulated; 6.5 A total continuous supply current
- NAC outputs: four (4), each rated 2.5 A maximum
- NAC circuit styles: Class B (Style W, X, Y) or Class A (Style Z)
- Per-output coding: selectable Steady, Temporal Code 3, or strobe-sync
- FACP trigger input: compatible with dry-contact or polarity-reversal trigger
- Built-in battery charger for sealed lead-acid or gel cells; automatic battery cutover on AC loss
- Zero voltage drop on AC-to-battery transition
- Listing: UL Listed for Fire Systems (UL 864); compliant with NFPA 72
Application Context
Furthermore, the AL602ULADA is purpose-built for fire-alarm NAC expansion. Therefore, install it where the host FACP cannot supply enough current for added ADA-required strobes or sync-coded horn-strobes. As a result, technicians avoid replacing the entire panel just to add notification capacity.
Order or Get Application Help
To order the Altronix AL602ULADA or get sizing help for your NAC load, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 11 lbs |
|---|---|
| Dimensions | 16 × 14 × 6 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
