The Altronix SMP5WP is an outdoor, weatherproof DC power supply and charger. Specifically, it delivers 12VDC at 4 A or 24VDC at 3.5 A to CCTV and security loads mounted outside the building envelope.
First, the SMP5WP accepts 115VAC or 230VAC mains via a worldwide-rated input. Then, it converts that input into a selectable 12VDC or 24VDC regulated output. In addition, the supply includes a built-in charger that maintains a sealed lead-acid or gel backup battery. As a result, the camera or device stays online during AC outages. Therefore, the SMP5WP suits parking-lot cameras, perimeter lighting controllers, and outdoor wireless gear.
Outdoor Enclosure Detail

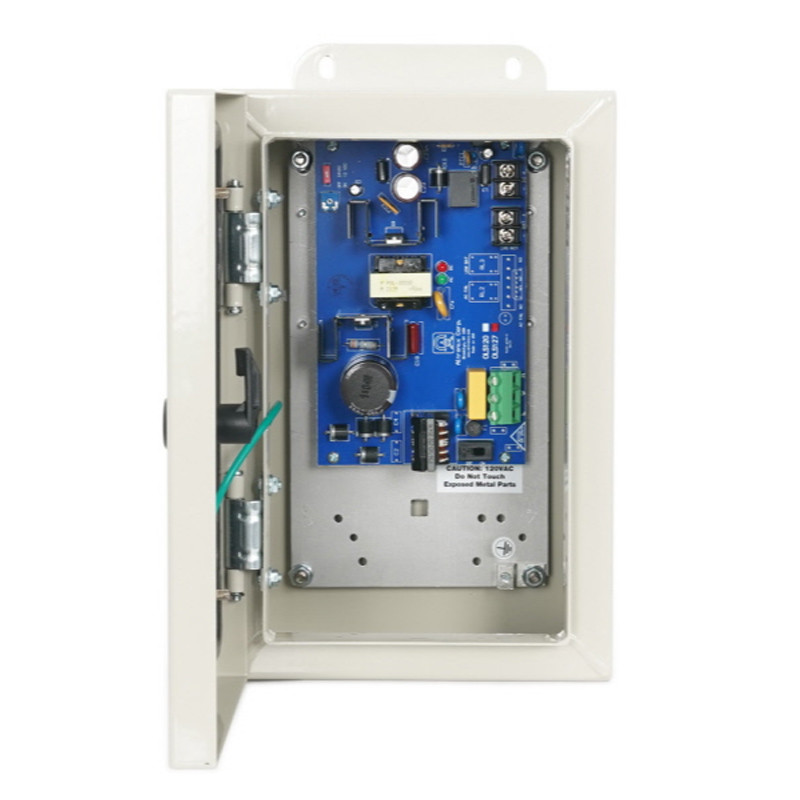

Furthermore, the SMP5WP enclosure is 16-gauge steel with a fused polyester powder finish. The cabinet is NEMA 4 / 4X and IP66-11 rated for direct outdoor exposure. It also includes turn-lock latching plus integral mounting flanges. As a result, technicians wall-mount or pole-mount the unit without drilling extra brackets.
Altronix SMP5WP — Verified Specifications
- Input: 115VAC, 60Hz, 0.95 A — or 230VAC, 50Hz, 0.6 A
- Output: 12VDC at 4 A continuous, or 24VDC at 3.5 A continuous, selectable
- Battery backup: sealed lead-acid or gel; instantaneous failover on AC loss
- Enclosure: 16 GA steel, fused polyester powder finish, NEMA 4 / 4X, IP66-11 rated
- Mounting: turn-lock latching with integral wall- or pole-mount flanges
- Protections: short-circuit and thermal-overload; filtered and regulated output
Important Application Note — Not a Fire-Alarm Power Supply
The SMP5WP is positioned for outdoor CCTV, intrusion, and general security loads. However, this unit is not UL 864 listed for fire-alarm service. Therefore, do not install the SMP5WP as a fire-alarm power source. Alternatively, ask about Altronix’s UL 864 9th-edition product family for fire-alarm DC power needs.
Order or Get Application Help
To order the Altronix SMP5WP or get sizing help for your outdoor load, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 10.8 lbs |
|---|---|
| Dimensions | 16.75 × 11.5 × 8.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
