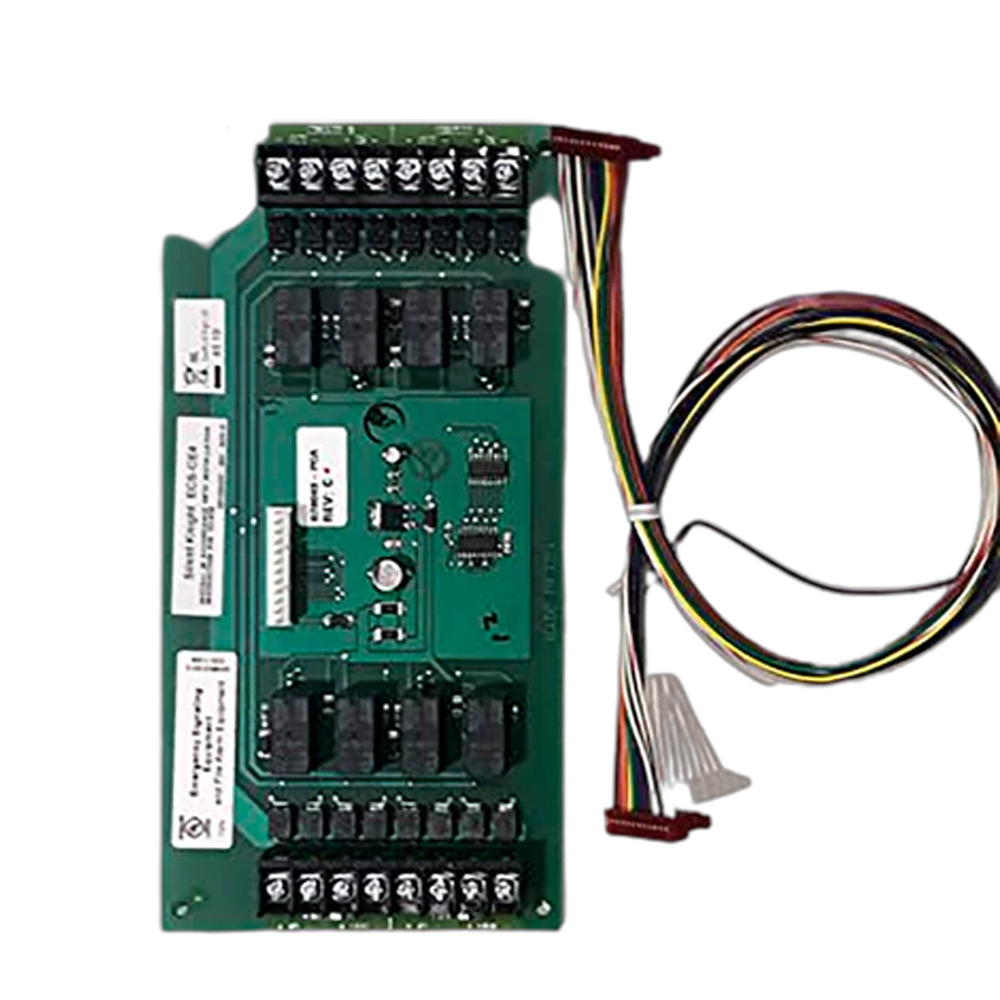

The FARENHYT ECS-CE4 Audio Circuit Expander is a critical component for expanding audio notification capabilities in complex fire alarm communication systems, specifically designed for integration with the ECS-125W panel. This precision-engineered module allows fire alarm professionals to extend audio circuit capacity in commercial and institutional facilities, providing enhanced emergency communication infrastructure.
Engineered for reliability in mission-critical environments, the ECS-CE4 enables seamless expansion of audio notification zones in addressable fire alarm networks. Ideal for large commercial spaces such as office complexes, educational institutions, healthcare facilities, and multi-story buildings, this expander ensures comprehensive audio coverage and precise signaling during emergency events.
Key Features
- Compatible with FARENHYT ECS-125W fire alarm control panels
- Supports additional audio circuit expansion without panel replacement
- Designed for robust performance in commercial and institutional settings
- Meets rigorous UL 464 and NFPA 72 compliance standards
- Low-impedance circuit design for consistent audio signal transmission
- Compact form factor facilitating straightforward installation in existing control enclosures
Technical Specifications
- Input Voltage: 24VDC nominal
- Current Draw: 50mA maximum
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Mounting: Standard electrical box compatible
- Dimensions: 5.25″ x 3.75″ x 1.25″ (approximate)
Certified for use in addressable fire alarm systems, the ECS-CE4 provides fire alarm technicians with a reliable solution for expanding audio notification capabilities. Its robust design ensures consistent performance across diverse commercial installation environments, from data centers and manufacturing facilities to healthcare complexes and educational campuses.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 28.84 lbs |
|---|---|
| Dimensions | 3.4 × 14.5 × 24.75 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
