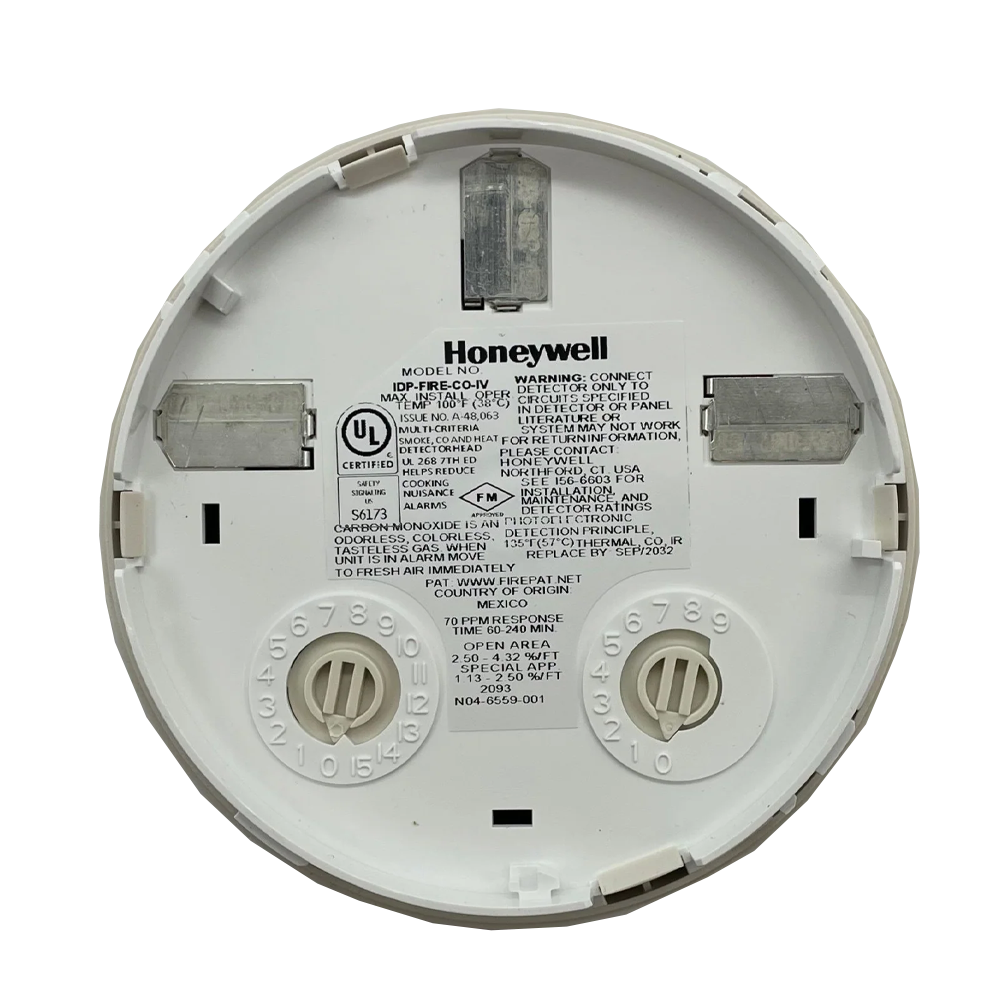

The Farenhyt IDP-FIRE-CO-IV is a plug-in addressable detector that monitors fire and carbon monoxide together. It uses four sensing elements in one head and ships in an ivory housing.
First, the detector samples smoke, CO, light/flame, and heat at the same time. Then, the panel correlates those signals to decide if a real fire event is occurring. As a result, the IDP-FIRE-CO-IV improves sensitivity to actual fires and rejects more nuisance particulates.
In addition, a separate electrochemical cell generates a dedicated life-safety CO signal. Therefore, the detector covers both UL 268 fire and UL 2075 CO life-safety roles in one device.
Specifications
- Operating voltage: 15 to 32 VDC
- Operating current: 300 µA
- Operating temperature: 32° F to 100° F
- Weight: 3.4 oz (95 g)
- Listings: UL 268 7th edition (fire), UL 521, UL 2075 (CO)
- Housing color: Ivory
Bases
The IDP-FIRE-CO-IV is recommended for use with B200S series intelligent sounder bases. As a result, technicians can pair the detector with a sounder base for local audible alarm at the sensor location.
Order the Farenhyt IDP-FIRE-CO-IV
To verify panel compatibility or place an order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.5 × 4.5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
