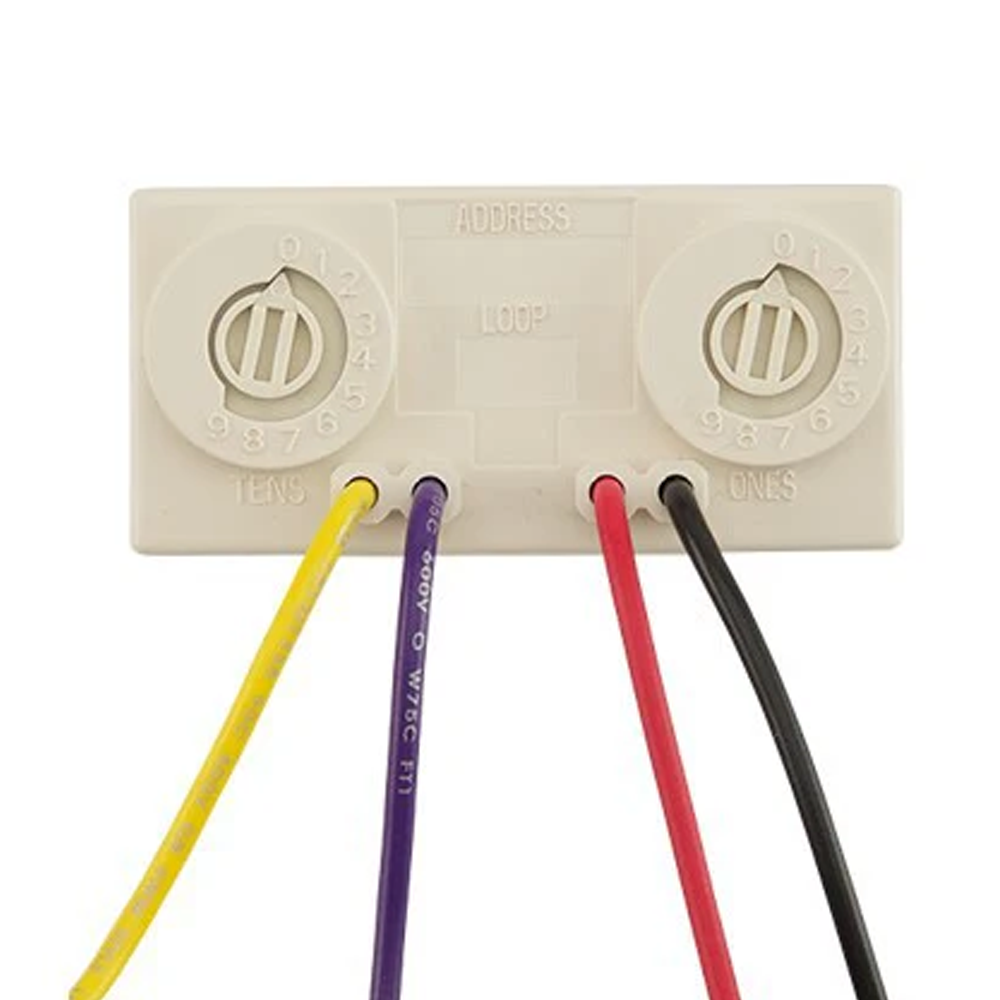

The Farenhyt IDP-MINIMON is a compact addressable monitor module for IFP-series fire alarm control panels. It interfaces contact devices to the SLC loop, in a footprint small enough to fit a single-gang box.
First, the IDP-MINIMON monitors normally-open dry contacts. Then, the SLC reports the device state back to the FACP using a unique address. In addition, conventional 4-wire smoke detectors can be supervised through the same module for both alarm and trouble.
Common Uses
Specifically, the module interfaces waterflow switches, valve tamper switches, manual pull stations, and 4-wire smoke detectors. As a result, installers can mount it directly behind the monitored device for a clean install.
Specifications
- Dimensions: 1.3″ H × 2.8″ W × 0.5″ D (3.3 × 7.0 × 1.3 cm)
- Shipping weight: 1.2 oz (37 g)
- Operating temperature: 32° F to 120° F (0° C to 49° C)
- Humidity: 10% to 93%, non-condensing
- Operating voltage: 15 to 32 VDC
- SLC standby and alarm current: 350 µA
- End-of-line resistor: 47 kΩ
- Initiating device circuit wiring: 1,500 Ω max
- SLC loop resistance: 40 Ω max
- Wiring style: Class B supervised
Mounting
The IDP-MINIMON fits a single-gang junction box. Therefore, it can sit directly behind the monitored device. Furthermore, this keeps SLC home-run wiring short and tidy.
Order the Farenhyt IDP-MINIMON
To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2 × 4 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Monitor Module |
