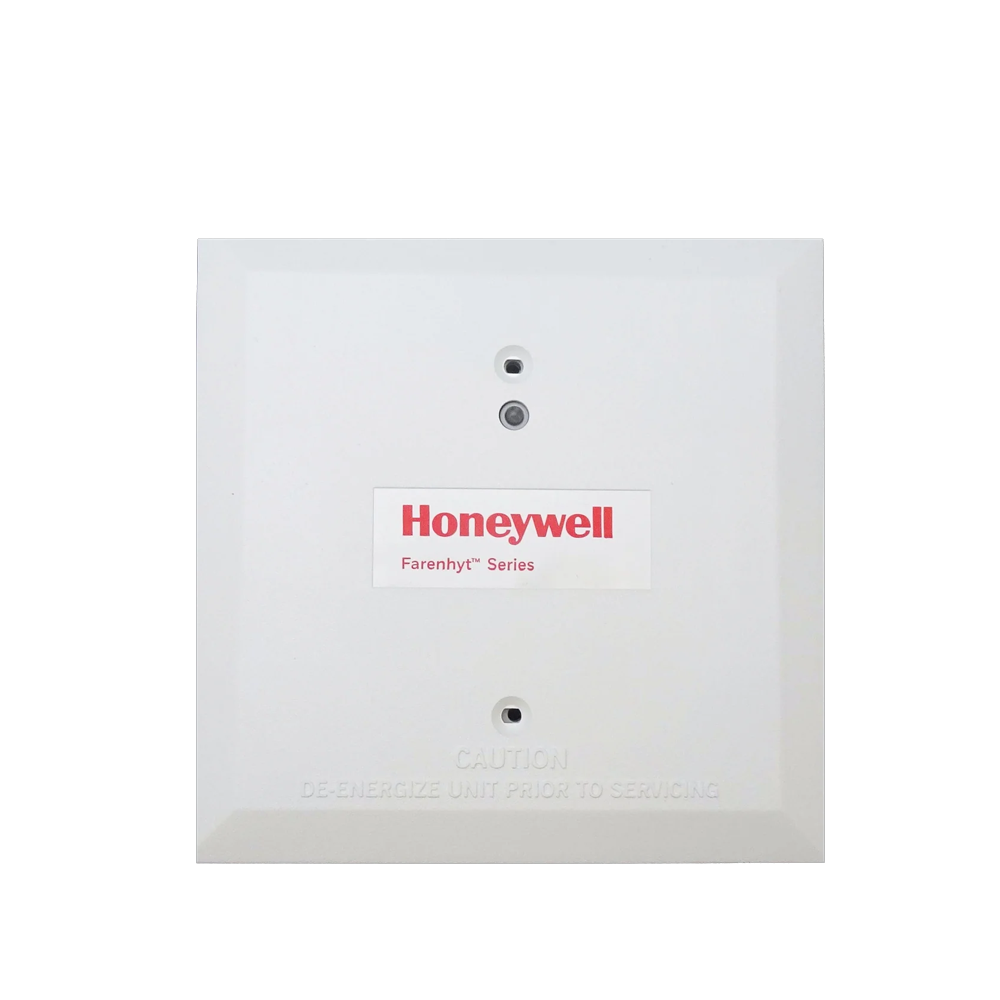

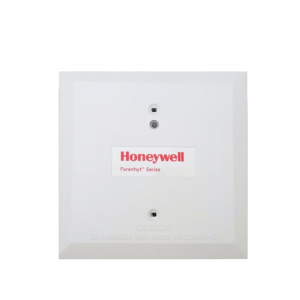

FARENHYT (IDP-MONITOR-2) Addressable Monitor Module, Supervised W

The FARENHYT IDP-MONITOR-2 Addressable Monitor Module is a sophisticated supervised input module designed for advanced fire alarm and emergency notification systems in complex commercial and institutional environments. This professional-grade module provides critical interface capabilities between traditional initiating devices and intelligent addressable fire alarm control panels, enabling precise zone monitoring and sophisticated system integration.

Engineered for comprehensive supervision and reliability, the IDP-MONITOR-2 supports two independent initiating circuits, allowing for seamless connection of conventional detection devices like contact switches, pull stations, or auxiliary inputs into addressable network architectures. Its robust design supports critical applications across diverse facilities including healthcare campuses, educational institutions, high-rise commercial complexes, and industrial facilities where precise detection and reporting are paramount.

Key Features

• Dual independent supervised initiating circuits with Class A/B configuration options
• Compatible with FARENHYT IDP series intelligent fire alarm control panels
• Low-impedance monitoring with advanced short and open circuit detection
• Compact form factor supporting dense panel integration with minimal footprint
• UL 864 and NFPA 72 compliant for critical life safety applications
• Supports multiple detection device types including contact inputs, thermal sensors, and dry contact switches

Technical Specifications

• Operating Voltage: 15-32 VDC
• Standby Current: < 500 µA
• Alarm Current: 6-10 mA
• Maximum Wire Length: 5000 ft (1524 m)
• Temperature Range: 32°F to 120°F (0°C to 49°C)
• Relative Humidity: 10% – 93% non-condensing

The IDP-MONITOR-2 is extensively tested to meet stringent industry standards including UL 268 for smoke detection, UL 464 for notification appliances, and NFPA 72 National Fire Alarm and Signaling Code. Its modular architecture provides fire alarm technicians with a versatile solution for converting conventional detection zones into intelligent, addressable monitoring points with comprehensive diagnostic capabilities.
