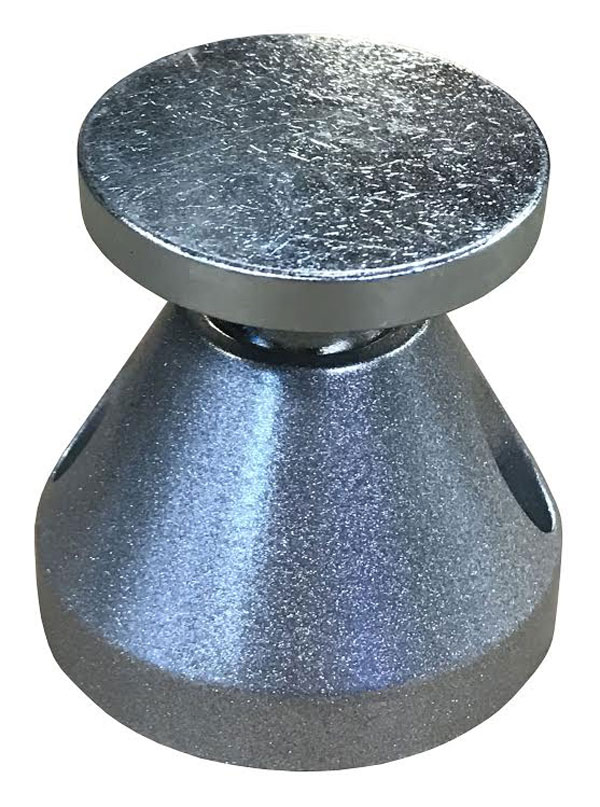

The Fire-Lite DHSBPC-1-1-1-1 is a replacement door holder armature plate. It mounts to the door face. Then it mates with an electromagnetic door holder coil mounted on the wall.
The armature itself is a passive ferrous plate with a flexible mounting pivot. Specifically, the wall-mounted electromagnet provides the holding force. As a result, on alarm the panel drops magnet power, the armature releases, and the fire door swings closed under its self-closing hardware.
How the Fire-Lite DHSBPC-1-1-1-1 Fits Into the System
First, the building’s fire alarm control panel energizes the door-holder magnet circuit during normal operation. Then, on alarm, the panel removes power from that circuit. Finally, the armature separates from the magnet and the door closes. As a result, the building’s compartmentalization holds during a fire event.
Key Features
- Replacement armature plate for Fire-Lite-style door holder assemblies
- Flexible mount accommodates small door-to-magnet alignment offsets
- Compatible with common 24 VDC electromagnetic door holders
- For commercial corridor, stairwell, and HVAC interface doors
- Cross-references the Potter / Amseco DHSBPC armature family
Important Compatibility Notes
The DHSBPC armature family is shared across several OEMs. For example, Potter, Amseco, RSG, and Fire-Lite have used the same basic geometry over the years. However, mount stud length, plate diameter, and pivot stem geometry vary by revision. Therefore, field-verify your existing armature dimensions before ordering. Our team can confirm fit if you send a photo or part number from the old armature.
Important Note About Listings
An armature is a passive ferrous plate with no electrical or mechanical rating of its own. Specifically, the holding force is provided by the wall-mounted magnet, not by the armature. Therefore, this armature does not carry standalone UL 268, UL 464, or NFPA 72 listings. The complete door-holder magnet assembly carries the applicable listing.
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied door holder armatures and magnets across multiple OEMs. To order the Fire-Lite DHSBPC-1-1-1-1 or confirm cross-OEM fit, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 2 × 1.5 × 1.5 in |
| Condition | New |
| Part Type | Door Holder Accessory |
