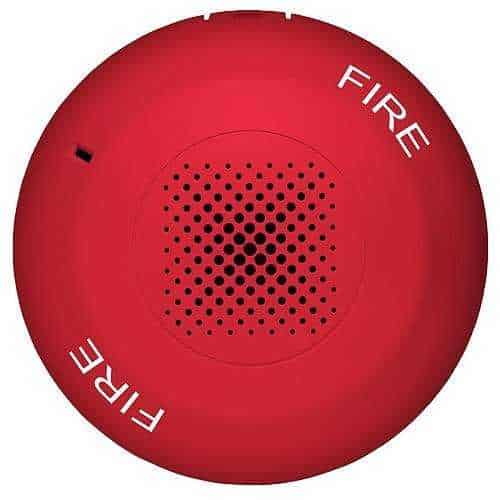

The KIDDE COMMERCIAL EGCARF is a ceiling-mount Genesis LED EGC Series fire alarm horn. Specifically, it ships with a red housing and the “FIRE” marking.
First, the EGCARF mounts to the included GP10 (or GRSW-10) room-side wiring plate. Then, the horn snaps into the plate, simplifying pre-install and pre-wire. Furthermore, a diagnostics check bar verifies electrical continuity before the cover goes on.
In addition, the EGC horn supports either constant or three-pulse temporal (T3) coding. Therefore, the same SKU works for either steady or NFPA 72 temporal patterns by sliding the on-cover tone selector switch.
Key Features of the KIDDE COMMERCIAL EGCARF Ceiling Horn
- Ceiling-mount Genesis LED EGC Series horn, red housing, FIRE marking
- Field-selectable high or low dBA output (~6 dBA difference)
- Field-selectable constant or T3 temporal output
- Improved audio frequency range for better wall penetration
- Low-profile ceiling design protrudes only 1.82 in (4.62 cm) below the ceiling
- Quick-swap replaceable covers with FIRE/None/ALERT markings, red or white
- Universal GP10/GRSW-10 room-side wiring plate included
- Diagnostics test points under the cover for verifying NAC voltage
- Listed for ceiling OR wall mounting
- Compatible with Kidde CC Series signal modules, booster supplies, and Intelligent and Conventional Control Panels
Sound Output
- Reverberant (UL 464): 80 dBA (C-Low/T-Low) or 86 dBA (C-High/T-High)
- Anechoic (CAN/ULC-S525): 86 dBA (C-Low/T-Low) or 92 dBA (C-High/T-High)
- Horn ULC sound pattern: 93.3 dBA at 115° and 55° horizontal; 91.7 dBA at 125° and 50° vertical
Specifications
- Operating voltage: 16 to 33 VDC, 16 to 33 VFWR
- Horn signal type: constant or T3 temporal (field selectable)
- Operating current (horn only): C-Low/T-Low 20 mA (25 mA VFWR); C-High/T-High 30 mA (40 mA VFWR)
- Wire size: 12 to 18 AWG (0.75 to 2.50 mm²)
- Dimensions: 6.8 in (17.27 cm) diameter × 1.82 in (4.62 cm) depth
- Compatible electrical boxes: 1-gang, 2-gang, 4-inch octagon, 4-inch square
- Documented in Kidde data sheet K85001-1021
Mounting and Trim
First, the EGC family fits 1-gang, 2-gang, 4-inch octagon, and 4-inch square electrical boxes. In addition, the optional EGCT trim plate (0.3 in deep, 10.6 in diameter) covers oversized openings. Furthermore, color-matched double-gang surface boxes are available for surface installations.
Order or Get Application Help
Life Safety Consultants stocks the full Genesis EGC ceiling horn, strobe, and horn-strobe lineup. To order the KIDDE COMMERCIAL EGCARF or to confirm sound coverage for your space, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 7.25 × 7.25 × 4.25 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
