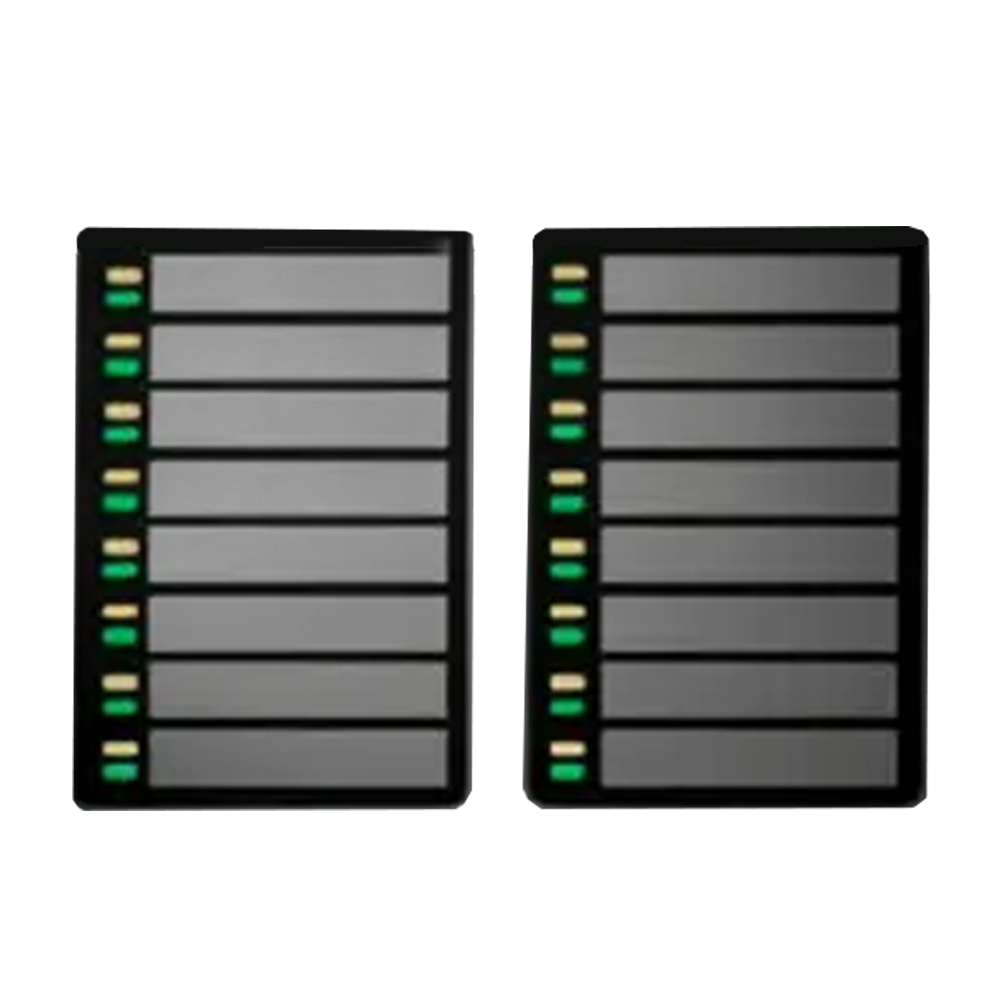

The Kidde D16L-VS is a 16-zone driver/annunciator module that displays alarm and trouble at the panel. First, it provides two LEDs per zone — typically one alarm and one trouble. Then, the panel drives the LEDs through a serial annunciator interface.
In addition, the D16L-VS is the local annunciator complement to remote graphics. As a result, technicians can read system state at a glance. Specifically, the module is used inside or alongside Kidde / Vigilant control panels.
How the Kidde D16L-VS Works
The D16L-VS connects to the panel’s annunciator data bus. Then, the panel programming maps each LED pair to a system point or zone. Finally, alarms, troubles, and supervisories light the assigned LEDs.
Furthermore, the LED labels are field-customizable through the panel’s annunciator programming. As a result, a single hardware module can serve many different building layouts.
Typical Applications
- Local zone annunciator inside a fire alarm control cabinet
- Lobby annunciator with alarm and trouble LEDs per zone
- Sub-annunciator for a multi-tenant building
- Visual status panel for first-responder access
Key Features
- 16 zones with two LEDs per zone (32 LEDs total)
- Field-mappable LED assignments via panel programming
- Designed for Kidde / Vigilant annunciator data bus
- UL Listed for use with the supporting fire alarm control panel
Order the Kidde D16L-VS
Life Safety Consultants stocks the D16L-VS alongside other Kidde annunciator modules. To confirm compatibility with your panel and the right module variant for your zone count, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Annunciator |
