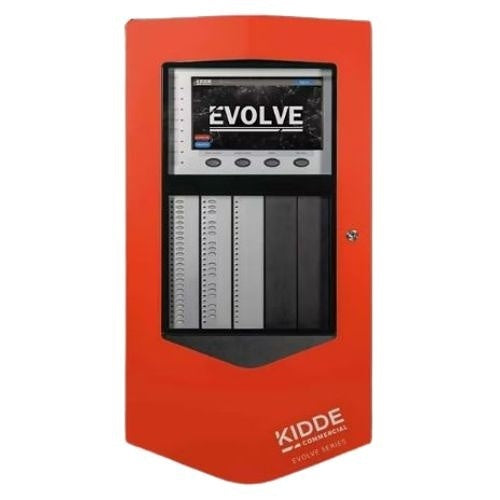

The Kidde EVOLVE-ML-R represents a sophisticated four-loop fire alarm control panel engineered for comprehensive commercial fire detection and notification systems. Designed for complex architectural environments such as multi-story office complexes, healthcare facilities, educational campuses, and industrial installations, this advanced panel delivers robust networking capabilities and intelligent system management.
Integrating cutting-edge addressable technology, the EVOLVE-ML-R provides precise event monitoring and zone-specific reporting across multiple detection circuits. Its built-in 250-point capacity enables extensive coverage for large-scale facilities, with seamless expandability and advanced communication protocols that support intricate fire safety infrastructure.
Engineered to meet stringent fire protection standards, this panel offers professional installers a reliable, high-performance solution for critical life safety applications. The system’s modular design facilitates straightforward installation, configuration, and future system modifications while maintaining comprehensive compliance with NFPA 72 fire alarm and signaling code requirements.
Key Features
- Four independently configurable Class A/B addressable loops supporting up to 250 intelligent devices
- Native support for SLC (Signaling Line Circuit) communication protocols
- Built-in Ethernet connectivity for remote monitoring and system diagnostics
- Comprehensive event logging with time-stamped, detailed incident records
- Compatible with multiple communication technologies including radio, cellular, and IP network interfaces
- UL 864 Listed for critical fire alarm control equipment
Specifications
- Operating Voltage: 120/240 VAC, 50/60 Hz
- Standby Current: Less than 500 mA
- Alarm Current: Maximum 2.5A at 24VDC
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
Compliance and Certification
The Kidde EVOLVE-ML-R panel is certified to meet or exceed the following industry standards:
- NFPA 72 – National Fire Alarm and Signaling Code
- UL 864 – Control Units and Accessories for Fire Alarm Systems
- UL 268 – Smoke Detectors for Fire Protective Signaling Systems
- ADA accessibility requirements
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 44 lbs |
|---|---|
| Dimensions | 38.5 × 21 × 13 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
