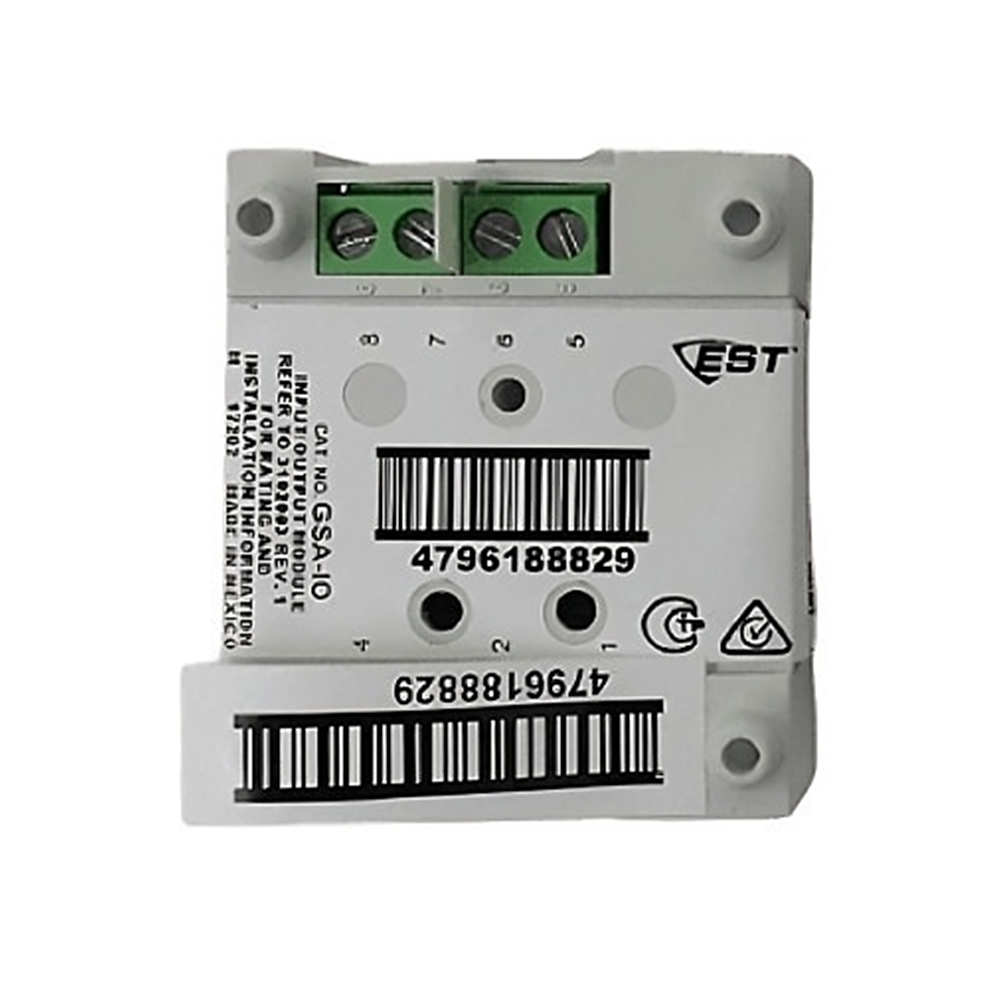

The Kidde GSA-IO is a universal input/output module for the Signature addressable loop. First, it provides one supervised input and one dry-contact output. Then, the loop controller addresses each side as a separate point.
In addition, the GSA-IO is the workhorse for tying auxiliary equipment to the panel. As a result, one module can monitor a contact and drive a relay-controlled load. Specifically, the personality code at commissioning sets each side’s function.
How the Kidde GSA-IO Works
The GSA-IO plugs into a Signature mounting base. Then, the input is wired with end-of-line supervision. Finally, the output drives a Form-C dry contact for the controlled device.
Furthermore, the input and output are independently configurable. As a result, the same module can serve a supervisory input plus an HVAC shutdown output, for example. Also, both circuits are supervised end-to-end.
Typical Applications
- HVAC fan shutdown on smoke alarm
- Elevator recall output with status input from the controller
- Door release on alarm with door-status monitoring
- Magnetic door hold output with auxiliary supervisory input
Key Features
- One supervised IDC input and one Form-C dry-contact output
- Independent personality codes for input and output sides
- Supervised input wiring with end-of-line resistor
- UL 38, UL 864, ULC-S527, ULC-S528, and FM3010 listed
- Compatible with Kidde / Vigilant / Edwards Signature loop controllers
Order the Kidde GSA-IO
Life Safety Consultants stocks the GSA-IO alongside other Signature input, output, and UIO modules. To confirm the right module and personality codes for your application, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Pull Station |
