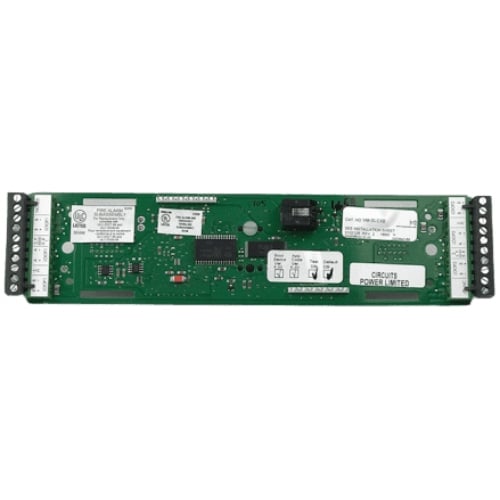

KIDDE (VM-SLCXB2) Signaling Line Expansion Card

The Kidde VM-SLCXB2 is the Signaling Line Loop Controller Expansion Card for VM Series fire alarm control panels. As a result, the host panel can grow beyond the loops carried on the VM-CPU.

Specifically, the VM-SLCXB2 ships with one pre-installed VM-SLC card. Therefore, plugging the assembly into a VM-1R or VM-1S panel adds loop 3 immediately. Furthermore, the second card slot accepts an additional VM-SLC (ordered separately) to populate loop 4.

Each loop supports up to 250 addressable points. Specifically, that is 125 V-Series detectors plus 125 GSA-series modules. In addition, each loop wires Class A (Style 6) or Class B (Style 4) at the installer’s choice.

Key Features of the Kidde VM-SLCXB2

• Adds the third and fourth SLC loops to a VM-1 fire alarm control panel
• One VM-SLC card pre-installed; the second slot accepts another VM-SLC
• Up to two Class A or Class B data circuits for V-Series detectors and GSA modules
• 250 addressable points per loop (125 detectors + 125 modules)
• Plug-in install; no rewiring of existing loops required
• Documented in Kidde VM Series Data Sheet K85005-0133

Specifications

• Operating voltage: 19.0 VDC nominal, 24 VDC max
• Standby current (full loop, one circuit populated): 144 mA at 24 VDC
• Alarm current (full loop, one circuit populated): 204 mA at 24 VDC
• Standby current (full loop, both circuits populated): 264 mA at 24 VDC
• Alarm current (full loop, both circuits populated): 336 mA at 24 VDC
• Loop resistance: 100 Ω max.
• Loop capacitance: 0.5 µF max.
• Wire size: 12-18 AWG (1.0-4.0 mm²)
• Operating environment: 32 to 120°F (0 to 49°C), 0-93% RH non-condensing

Reaching the Panel’s Four-Loop Maximum

First, a base VM-1 panel ships with one on-board SLC on the VM-CPU. Then, a separately ordered VM-SLC adds loop 2 directly on the CPU. Furthermore, this VM-SLCXB2 provides loop 3 out of the box. Finally, adding a second VM-SLC into the expansion card completes loop 4 — the panel’s series maximum.
