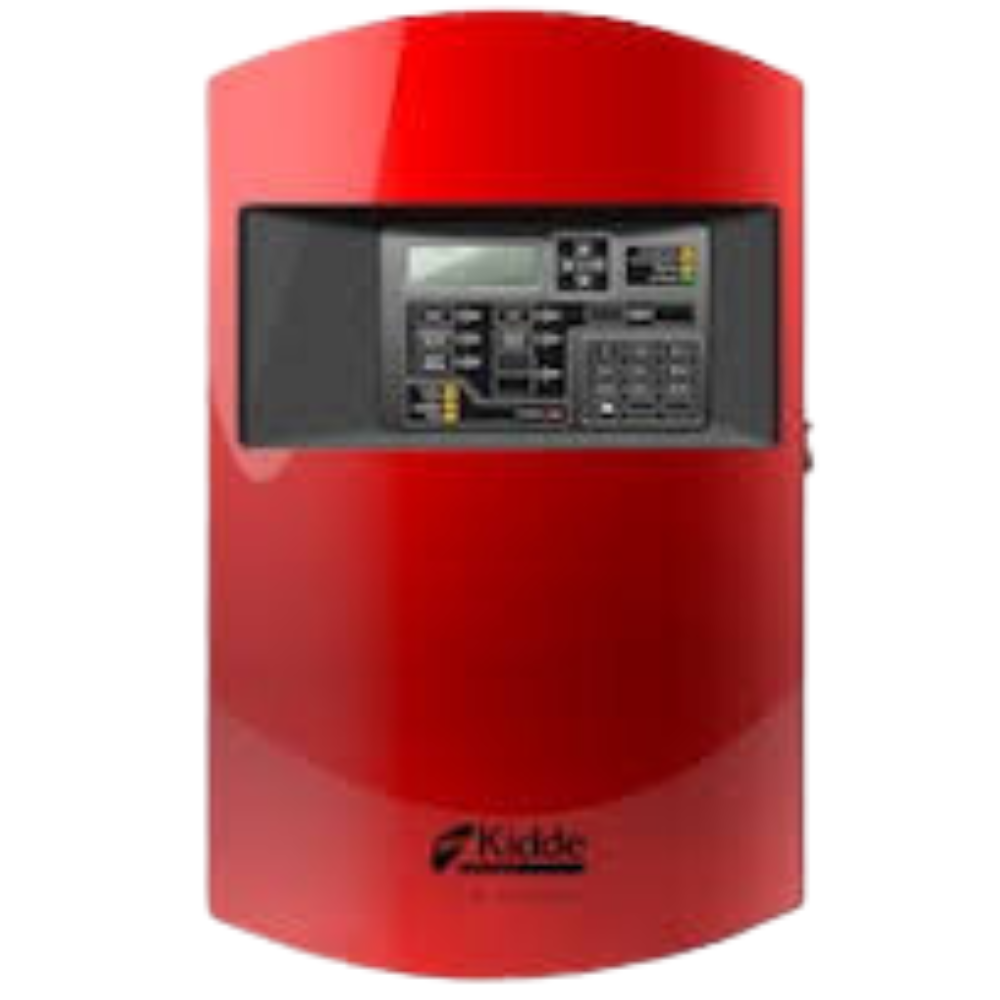

The Kidde VS1-R is a single-loop intelligent addressable fire alarm control panel with a red door. It serves small to mid-size commercial buildings that need 64 addressable points or fewer.
Specifically, the VS1 ships with one loop controller. As a result, that loop supports up to 64 Signature Series intelligent devices in any combination of detectors and modules. However, the VS1 panel’s device capacity cannot be expanded beyond 64 points.
In addition, the panel includes two Class B notification appliance circuits as standard. Furthermore, those NACs can be converted to Class A using optional adapters.
Key Features of the Kidde VS1-R
- Single Signature Series loop supporting 64 intelligent devices of any type
- Up to 20,000 ft of total loop wiring
- Two Class B NACs standard (optional Class A conversion)
- Optional booster power supply: 10 A or 6.5 A
- Two Form C relays plus one Form A relay
- Up to eight remote annunciators per system
- Built-in UL 1971 strobe synchronization for Genesis appliances
- ANSI Temporal 3 and Temporal 4 coding
- Incremental autoprogramming for moves, adds, and changes
Communication Options
First, the SA-ETH Ethernet card supports remote diagnostics and programming. Then, the SA-DACT card adds dual-line digital alarm communicator (DACT/dialer) reporting. Also, the SA-232 card provides an RS-232 serial port for printers or third-party equipment.
Specifications
- Loop capacity: 64 Signature Series addressable devices (detectors and/or modules)
- Loop wiring: up to 20,000 ft total
- NACs: 2 Class B (Class A optional)
- Relays: 2 × Form C, 1 × Form A
- Door color: Red (English)
- Display: backlit LCD with system menus, event log, and reports
- Listings: UL 864 commercial fire; cULus listed; meets NFPA 72
Sleeping-Area and Mass-Notification Use
The VS1 supports monitored CO and smoke detection using Signature Series multi-criteria sensors. Furthermore, the panel pairs with Genesis low-frequency 520 Hz notification appliances for sleeping-area applications.
Order or Get Application Help
Life Safety Consultants stocks the full VS Series catalog and ancillary modules. To order the Kidde VS1-R or to scope a Signature Series job, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 31 lbs |
|---|---|
| Dimensions | 27 × 17 × 14 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Power Supply |
