The Fire-Lite LDM-CBL24 is a 24-inch cable kit for the LDM-32F and LDM-E32F lamp driver modules. Specifically, it links the lamp driver to graphic LEDs, lamps, and switches on a custom annunciator panel.
Therefore, the LDM-CBL24 is the wiring harness between your lamp driver module and the front-panel graphics. As a result, custom graphic annunciators come together with a known-good set of cables.
What Comes in the Fire-Lite LDM-CBL24 Kit

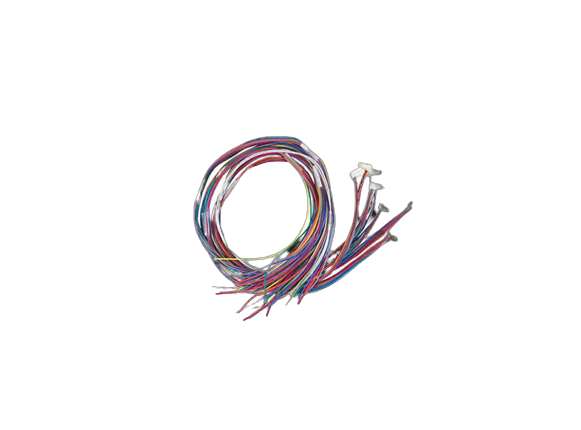

The 24-inch kit includes five pre-made cables. First, four output cables (P/N 75116) of eight stranded, multicolored conductors each. Then, one lamp-power cable (P/N 75118) of three stranded, multicolored conductors.
Furthermore, each cable has a plug on the LDM end. As a result, output cables connect to J5, J6, J7, and J8 on the LDM module. In addition, the power cable connects to J9 (or J11 on the expander) for lamp power.
How the Kit Wires a Graphic Annunciator
The LDM-32F is the master lamp driver. Specifically, it provides 32 driver outputs. Furthermore, the LDM-E32F expander adds another 32.
Therefore, a single LDM-CBL24 kit supports one LDM module’s worth of front-panel connections. Also, larger graphic panels stack multiple modules and multiple cable kits.
Key Features
- 24-inch cable kit for Fire-Lite LDM-32F and LDM-E32F lamp driver modules
- Includes (4) 8-conductor output cables — P/N 75116 — for J5, J6, J7, J8
- Includes (1) 3-conductor lamp-power cable — P/N 75118 — for J9 or J11
- Multicolored stranded conductors for easy field identification
- Connects LDM driver outputs to graphic LEDs, lamps, and switches
- Plug-in connection on the LDM end (split, strip on the graphic end)
Specifications
- Cable length: 24 inches
- Output cables: (4) × 8 stranded conductors (P/N 75116)
- Lamp-power cable: (1) × 3 stranded conductors (P/N 75118)
- For use with: Fire-Lite LDM-32F (master) and LDM-E32F (expander)
- Longer alternative: LDM-CBL48 (48-inch version)
