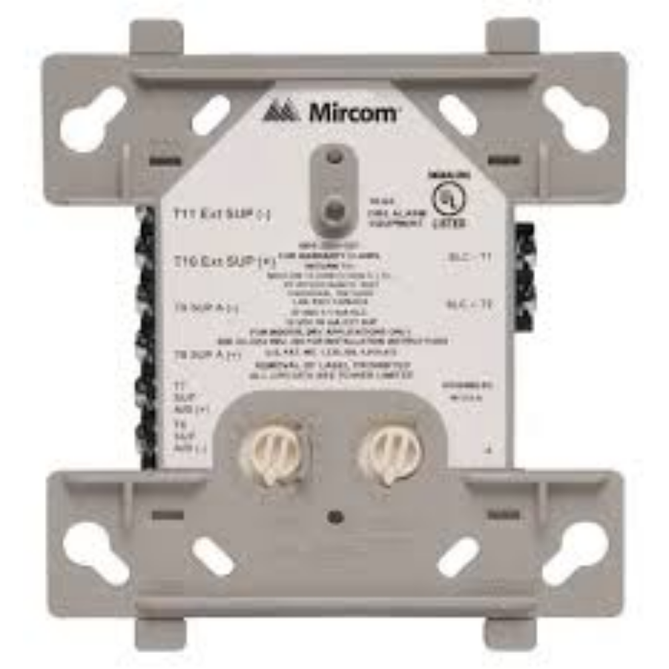

The Mircom MIX-M500MAP Intelligent Monitor Module represents advanced fire alarm monitoring technology for professional installation environments. Designed for comprehensive supervisory and detection capabilities, this module seamlessly integrates with addressable fire alarm control panels to provide precise monitoring of critical input devices and system zones.
Engineered for complex commercial and institutional fire detection networks, the MIX-M500MAP supports intelligent monitoring of normally-open (N/O) devices across various fire safety and building control applications. Its advanced protocol design enables precise signal interpretation and reporting, making it ideal for sophisticated fire alarm infrastructures in healthcare facilities, educational campuses, high-rise commercial buildings, and mission-critical infrastructure.
Key Features
- Supports Class A (Style D) and Class B (Style B) wiring configurations for flexible system design
- Fully compatible with MIRCOM intelligent addressable fire alarm control panels
- Single supervised input channel with advanced diagnostic reporting
- Low-profile design mounts easily in standard 4″ square electrical backboxes
- Compliant with NFPA 72 National Fire Alarm and Signaling Code requirements
- UL 268 and UL 464 listed for comprehensive safety system integration
Specifications
- Operating Voltage: 24VDC nominal
- Standby Current: Minimal circuit loading
- Communication Protocol: MIRCOM intelligent addressable protocol
- Environmental Rating: Indoor use, suitable for standard commercial environments
- Mounting: 4″ square electrical backbox
Typical installation scenarios include HVAC shutdown interfaces, door hold-open monitoring, sprinkler valve supervision, and general input device monitoring across complex fire detection networks. Professional fire alarm technicians will appreciate the module’s robust design and seamless integration capabilities with existing MIRCOM intelligent control systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 2 × 4 × 4.5 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Monitor Module |
