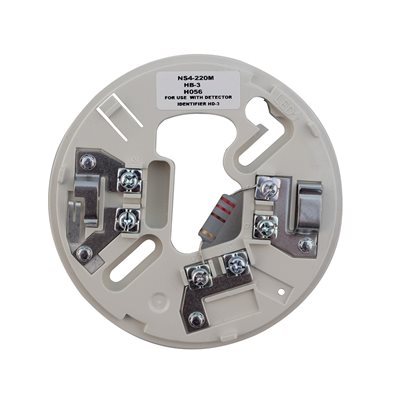

The Hochiki NS4-220 is a 4-inch conventional detector base for 2-wire fire alarm circuits. It runs on 24 VDC and ships with a built-in compatibility resistor.
First, the NS4-220 is an electronics-free base with a plastic tamper-lock lug. Then the integrated resistor signals device identity HB-3 to the panel. As a result, the panel recognizes the device on the initiating loop without external components.
How the Hochiki NS4-220 Operates
The NS4-220 mounts a compatible Hochiki conventional detector head. Specifically, the 4-inch base sits on a 3-inch octagonal electrical box. In addition, the tamper-lock lug secures the head against unauthorized removal.
Furthermore, listed end-of-line devices supervise the initiating circuit from the panel side. Therefore, panel diagnostics see open-circuit conditions and missing devices.
Electrical Specifications
- Operating voltage: 24 VDC
- Alarm current: 93 mA (136 mA at 33.0 V max)
- Compatibility ID: HB-3
- Wiring: 2-wire
- Base diameter: 4 inches
- Box mounting: 3-inch octagonal
- Construction: Electronics-free with built-in resistor
- Tamper feature: Plastic tamper-lock lug
- Listings: UL Listed, CSFM 7300-0410-0132
Compatible Detector Heads
Also, the NS4-220 works with Hochiki conventional models SOC-24V, SOC-24VN, SLR-24V, SLV-24, SLV-24N, SLV-24V, SLR-835, SLR-24H, SLR-835H, and DCD-135/190. However, the NS6 series 6-inch equivalent is needed for 4-inch octagonal or square box mounting.
Color Options
In addition, bases are available in bone (standard off-white) and white. Specifically, the “W” suffix indicates the white variant. As a result, installers can match the base color to the detector head.
Order the Hochiki NS4-220
Life Safety Consultants stocks the Hochiki NS4-220 alongside compatible detector heads and end-of-line devices. To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 0.2 × 4 × 4 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Detector Base |
