Hochiki (PE-6SN (110V) )power extender, 6 amp, sync notification (110v)

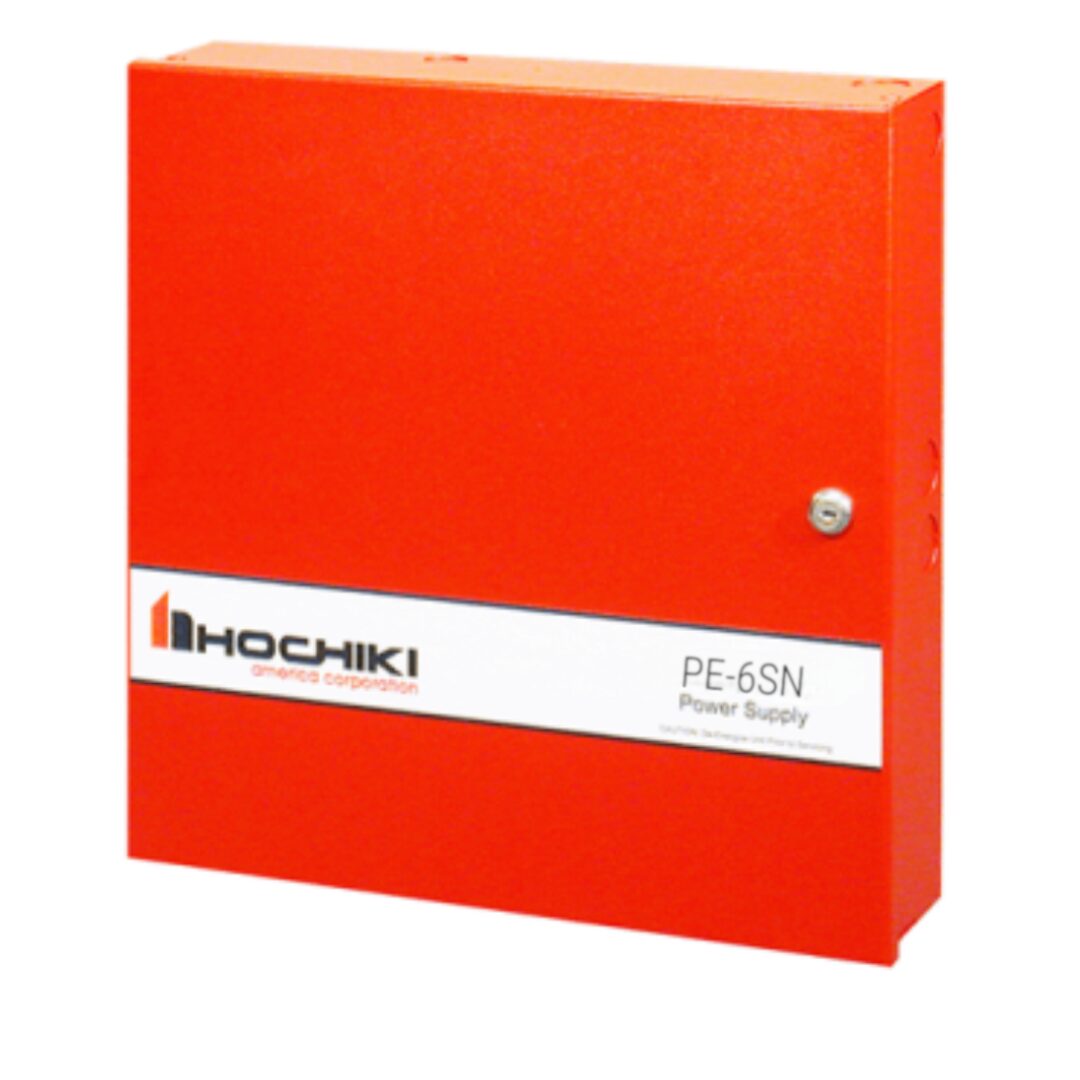

The Hochiki PE-6SN (110V) is a 6-amp 24 VDC switch-mode notification appliance power extender. It runs on 120/240 VAC 50/60 Hz input.

First, the PE-6SN takes a trigger from the host fire alarm control panel. Then it powers up to four NAC outputs at 24 VDC. As a result, large notification appliance loads do not draw from the main panel supply.

Hochiki PE-6SN Outputs and Sync

In addition, the PE-6SN includes four Class B Style “Y” NAC circuits. Specifically, each NAC is rated 3 amps maximum. Alternatively, the outputs can be reconfigured as up to two Class A Style “Z” circuits. Furthermore, a separate 3-amp DC output supports door holders or auxiliary loads.

Also, the PE-6SN generates sync for Potter, System Sensor, Gentex, and Wheelock notification appliances. However, mixed-brand sites benefit from QuadraSync, which lets appliances from different manufacturers sync to one timing source. Then a PassThru mode forwards the host panel’s input signal directly to the outputs.

Hochiki PE-6SN (110V) Specifications

• Input voltage: 120/240 VAC, 50/60 Hz
• Output voltage: 24 VDC at 6 A total
• NACs: 4 Class B Style “Y” (or up to 2 Class A Style “Z”), 3 A max each
• Trigger inputs: 2 (Class A Style Z or Class B Style Y)
• Separate DC output: 3 A
• Battery charger: 27.3 VDC at 1 A, supports 7-55 Ah batteries
• Trouble relays: 2, rated 5 A at 30 VDC
• Sync protocols: Potter, System Sensor, Gentex, Wheelock, plus QuadraSync
• Reference EOL: 2 kohm to 27 kohm supported

Order the Hochiki PE-6SN (110V)

Life Safety Consultants stocks the Hochiki PE-6SN alongside compatible batteries and notification appliances. To order or confirm sync compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
