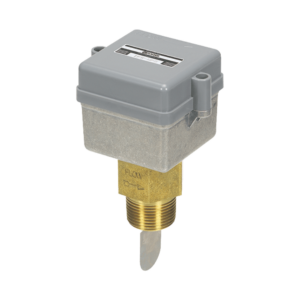

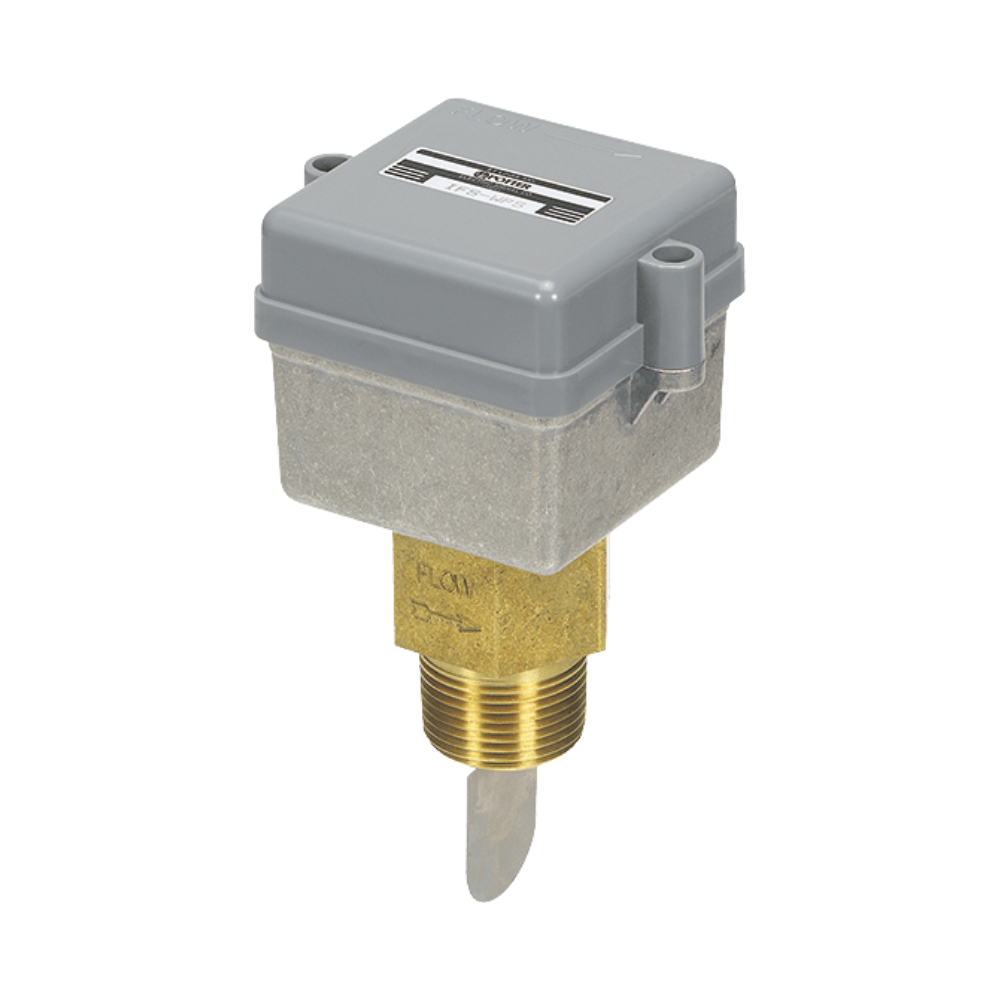

The POTTER IFSS-WPS is an outdoor industrial flow switch with a 316 stainless steel pipe connection. It detects liquid flow in industrial process lines. In addition, the weatherproof NEMA 4 enclosure suits outdoor and washdown locations. The IFSS-WPS is an industrial control device, not a fire-sprinkler waterflow switch.
How the POTTER IFSS-WPS Works
An internal paddle extends into the pipe and detects liquid flow. As a result, the SPDT switch transfers to signal flow or no-flow conditions. Furthermore, technicians can field-trim the paddle for intermediate pipe sizes from 1″ to 8″. The switch operates on horizontal pipe or vertical pipe with upward flow.
The IFSS-WPS uses a 1″ NPT 316 stainless steel pipe connection. Specifically, mount it in a 1″ × 1″ × 1″ tee on a 1″ line. However, for larger pipe sizes, use a reducing tee instead.
Application Notes
Use the IFSS-WPS to start and stop electrically operated equipment on flow change. For instance, it can drive pumps, valves, or alarm circuits. However, the device is rated for industrial control only, not fire-sprinkler service. Also, it is not suitable for hazardous locations.
Key Features
- 1″ NPT 316 stainless steel pipe connection — corrosion-resistant
- Outdoor weatherproof enclosure (IFS-WP variant)
- One SPDT (Form C) switch for industrial control circuits
- Field-adjustable trip point via sensitivity screw
- Field-trimmable paddle for 1″–8″ pipe sizes (paddles supplied)
- Two 1/2″ conduit knockouts
- Service: pipe sizes 1″ to 8″
Specifications (per Potter IFS/IFSS Series datasheet 5401022)
- Stock No.: 9000316
- Pipe Connection: 1″ NPT 316 Stainless Steel
- Maximum Service Pressure: 250 PSI
- Contact Rating: 15 A at 125/250 VAC; 0.5 A at 125 VDC; 0.25 A at 250 VDC
- Motor Rating: 1/8 HP at 120 VAC; 1/4 HP at 240 VAC
- Ambient Temperature: 32°F to 176°F (0°C to 80°C)
- Media Temperature: 32°F to 250°F (0°C to 121°C)
- Listings: UL Guide NKPZ per UL 508; UL Guide MFHX per UL 353; CSA Class 321106
Order the POTTER IFSS-WPS
Life Safety Consultants stocks the POTTER IFSS-WPS alongside compatible Potter flow switches. To confirm pipe-size fit and order, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 8 × 4 × 3.5 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Replacement Part |
