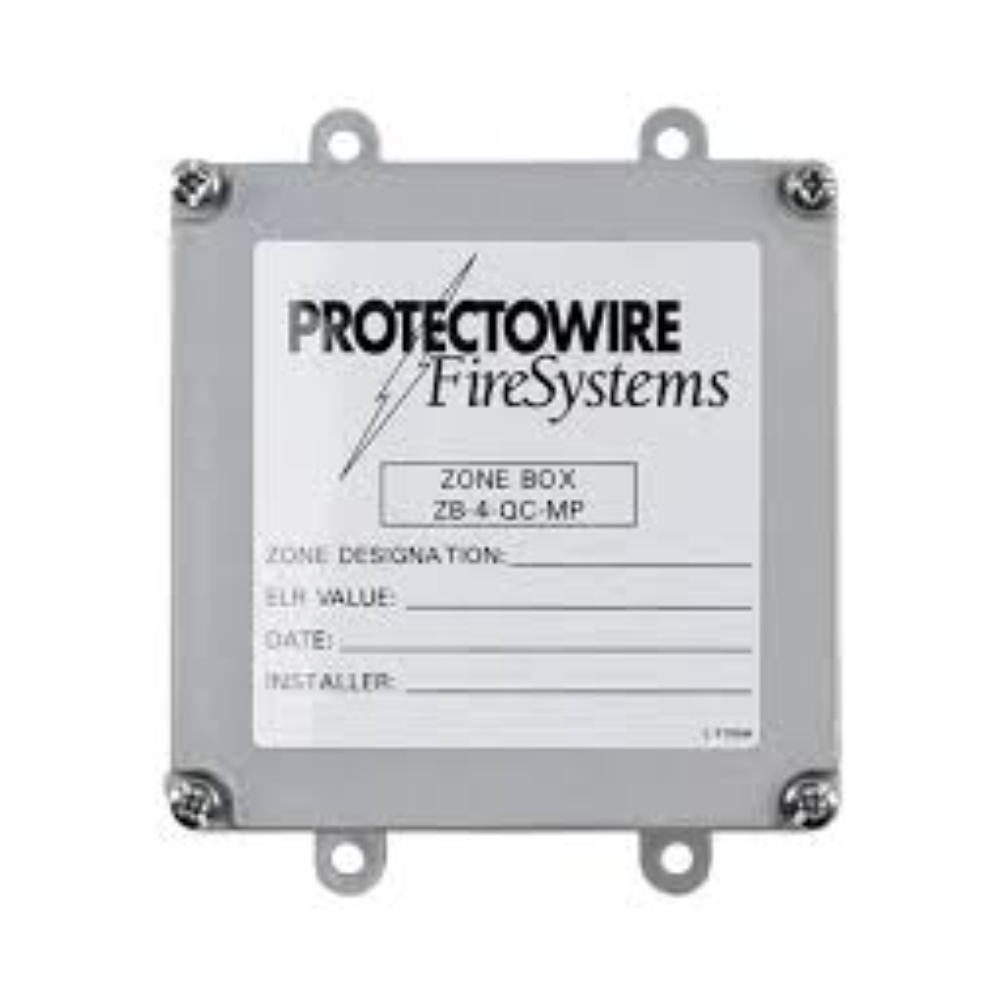

The Protectowire (ZB-4-QC-MP) is a non-metallic, moisture-proof zone box for linear heat detectors. Specifically, it houses termination wiring between the detector and copper feed cable. Moreover, it carries a NEMA 6P (IP67) environmental rating. As a result, it protects connections in wet or washdown areas.
Protectowire (ZB-4-QC-MP) specifications
First, the box measures 4 inches high by 4 inches wide by 2 inches deep. In addition, it uses PWSC compression terminals for the detector connection. It operates from -22°F to +212°F (-30°C to +100°C). Also, the cover uses #10-32 captivated stainless steel screws.
Compatibility and installation
The ZB-4-QC-MP works with PHSC and PLR linear heat detectors. However, it is not recommended for outdoor use in direct sunlight. Then connect copper feed conductors in the #18 to #14 AWG range. Therefore, order SR-502 strain relief connectors separately, since boxes ship without them. Finally, install the box no more than six feet above the floor.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4 × 4 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
