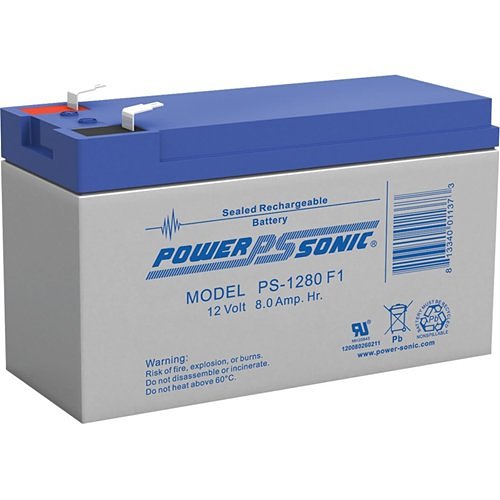

The Power Sonic PS-1280 F1 is a 12V, 8.0 Ah sealed lead acid (SLA / VRLA) battery. Specifically, it ships with F1 (0.187″ / 4.75 mm) quick-disconnect tabs. First, it provides standby and light-cyclic power for fire alarm panels, UPS, and emergency lighting. Then, the AGM construction is non-spillable and maintenance-free.
How the Power Sonic PS-1280 F1 is used
Therefore, integrators choose the PS-1280 when a panel calls for a 12V/8Ah SLA. Also, the F1 tab terminal matches standard quick-connect leads. In addition, the AGM design lets the battery operate in any orientation. As a result, the PS-1280 F1 covers most mid-size fire-system and security-panel standby duty.
PS-1280 F1 product details
- Nominal voltage: 12.0 V (6 cells)
- Nominal capacity: 8.0 Ah at 20-hr rate
- Terminals: F1 quick-disconnect tab (0.187″ / 4.75 mm)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS
- Dimensions: 5.95 in (L) × 2.56 in (W) × 3.72-3.90 in (H) (151 × 65 × ~95 mm)
- Approximate weight: 5.6 lb (2.5 kg)
- Float charge: 13.5-13.8 V at 20°C; cycle charge: 14.1-14.7 V at 20°C
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UN2800 non-spillable; consult Power-Sonic for current detail
Typical applications
Specifically, common uses include fire alarm panel backup, security/access control, UPS, and emergency lighting. Finally, confirm fit and Ah against the current Power-Sonic PS-1280 datasheet before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 5.94 × 2.56 × 3.9 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
