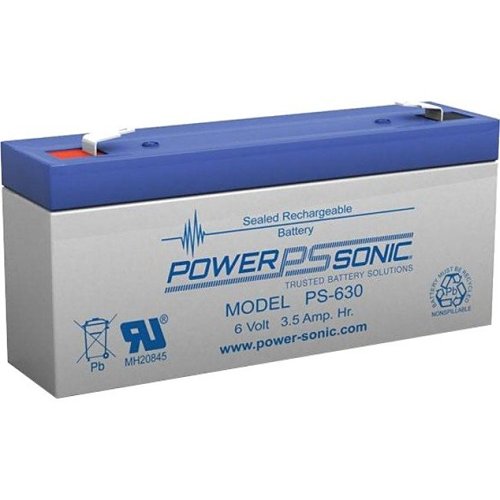

The Power Sonic PS-630 F1 is a 6V, 3.5 Ah sealed lead acid (SLA / VRLA) battery. Specifically, it uses F1 (0.187″ / 4.75 mm) quick-disconnect tabs. First, it supplies standby power for small fire-system devices, emergency lighting heads, and security alarm modules. Then, the AGM construction is spill-proof and maintenance-free.
How the Power Sonic PS-630 F1 is used
Therefore, technicians specify the PS-630 when a 6V/3.5Ah SLA is called out. Also, two cells are often paired in series to feed 12V loads. Also, the long, slim form factor fits inside compact emergency-lighting heads. In addition, F1 tabs accept standard quick-connect leads. As a result, the PS-630 F1 covers low-current standby duty in life-safety equipment.
PS-630 F1 product details
- Nominal voltage: 6.0 V (3 cells)
- Nominal capacity: 3.5 Ah at 20-hr rate (3.3 Ah at 10-hr)
- Terminals: F1 quick-disconnect tab (0.187″ / 4.75 mm)
- Chemistry: AGM sealed lead acid (VRLA), maintenance-free
- Case: ABS
- Dimensions: 5.28 in (L) × 1.34 in (W) × 2.35 in (H) (134 × 34 × 60 mm)
- Approximate weight: 1.4 lb (0.6 kg)
- Operating temperature: charge -4°F to 104°F (-20°C to 40°C); discharge 5°F to 122°F (-15°C to 50°C)
- Approvals: UL Recognized, UN2800 non-spillable; consult Power-Sonic for current detail
Typical applications
Specifically, common uses include emergency lighting heads, exit-sign modules, small fire and security devices, and portable test equipment. Finally, verify physical fit and Ah against the current Power-Sonic PS-630 datasheet before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
