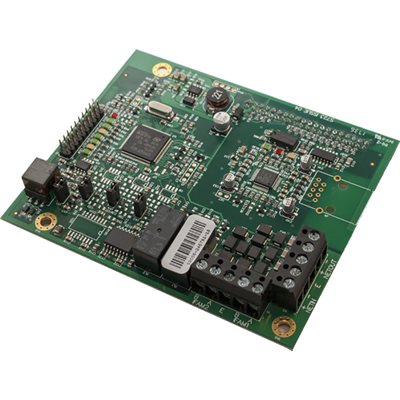

The Hochiki S723 is a FireNET L@titude Network Module. It provides Ethernet and IFAM networking for FireNET L@titude analog addressable fire alarm panels.
First, the S723 plugs into the L@titude main chassis. Then it bridges the panel to peer L@titude panels via IFAM or Ethernet. As a result, a multi-panel campus can act as one logical system.
Hochiki S723 Specifications
- Operating voltage: 24 VDC
- Standby/alarm current: 0.080 A (80 mA)
- Network interface: 10/100 Mbps Ethernet plus IFAM
- Operating temperature: -5 to 49 degrees C (23 to 120 degrees F)
- Relative humidity: 95% non-condensing
- Mounting: FireNET L@titude panel slot
- Part number: 0101-01230
How the Hochiki S723 Fits the L@titude Architecture
In addition, the S723 carries event, status, and command traffic between peer panels. Specifically, networked L@titude nodes share global cause-and-effect, common annunciation, and event-log replication. However, only L@titude-family panels exchange traffic through this module.
Also, fire alarm contractors use the S723 to extend a single L@titude panel into a wider network. Therefore, large-site projects can stay on one product family rather than mixing controllers.
Order the Hochiki S723
Life Safety Consultants stocks the Hochiki S723 alongside other FireNET L@titude modules and accessories. To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 7 × 4.5 × 1.5 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Module |
