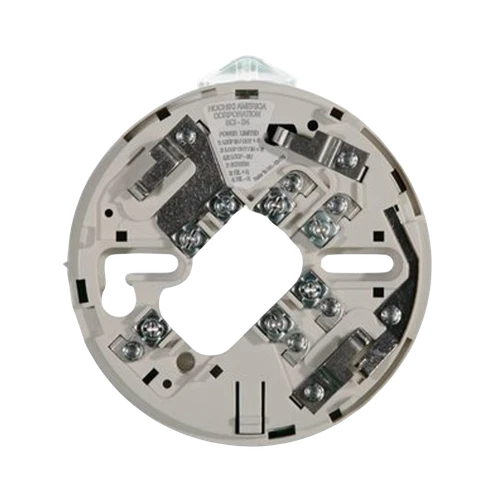

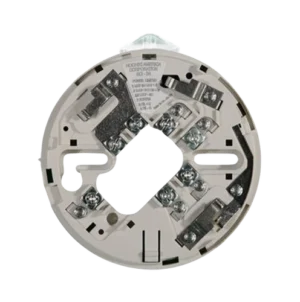

The Hochiki SCI-B4 is a 4-inch DCP analog sensor base with built-in short-circuit isolation. It combines a detector mount with loop fault isolation in one footprint.
First, install the SCI-B4 in place of a standard sensor base. Then mount a compatible Hochiki digital analog head on top. As a result, the SLC segment around this base stays isolated if a short occurs locally.
Compatible Hochiki Digital Analog Detectors
Specifically, the SCI-B4 supports the NS Digital Analog detector range. In addition, compatible heads include AIE-EA, ALG-V, ALK-V, ALN-V, ATG-EA, ATJ-EA, ACA-V, ACC-V, and ACD-V. However, conventional detectors will not seat on this base.
Hochiki SCI-B4 Specifications
- Operating voltage: 17 to 41 VDC
- Current draw: 160 microamp normal, 10 mA active (short condition)
- Base diameter: 4 inches
- Color and material: bone PC/ABS blend
- Security feature: plastic tamper-lock tab
- Built-in LED: indicates short-circuit condition
- Listings: UL Listed, CSFM 7300-0410:0186
Installation and Maintenance Notes
Furthermore, sensors can be swapped without breaking loop continuity. Also, the optional anti-tamper tab locks the head once seated. Therefore, public-area installations gain protection against casual removal.
Order the Hochiki SCI-B4
Life Safety Consultants stocks the Hochiki SCI-B4 alongside compatible analog detector heads. To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4 × 4 × 1 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Detector Base |
