Edwards (SIGI-271) Sigi-271 fire alarm call points are part of edwards’s signature series system. these integrated assemblies feature the familiar kac installers’ series call point packaged with signature series intelligent addressable/analogue interface electronics.

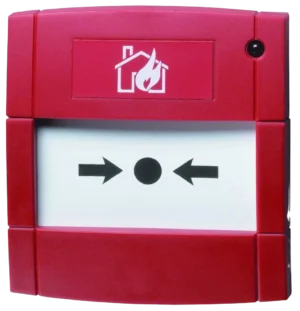

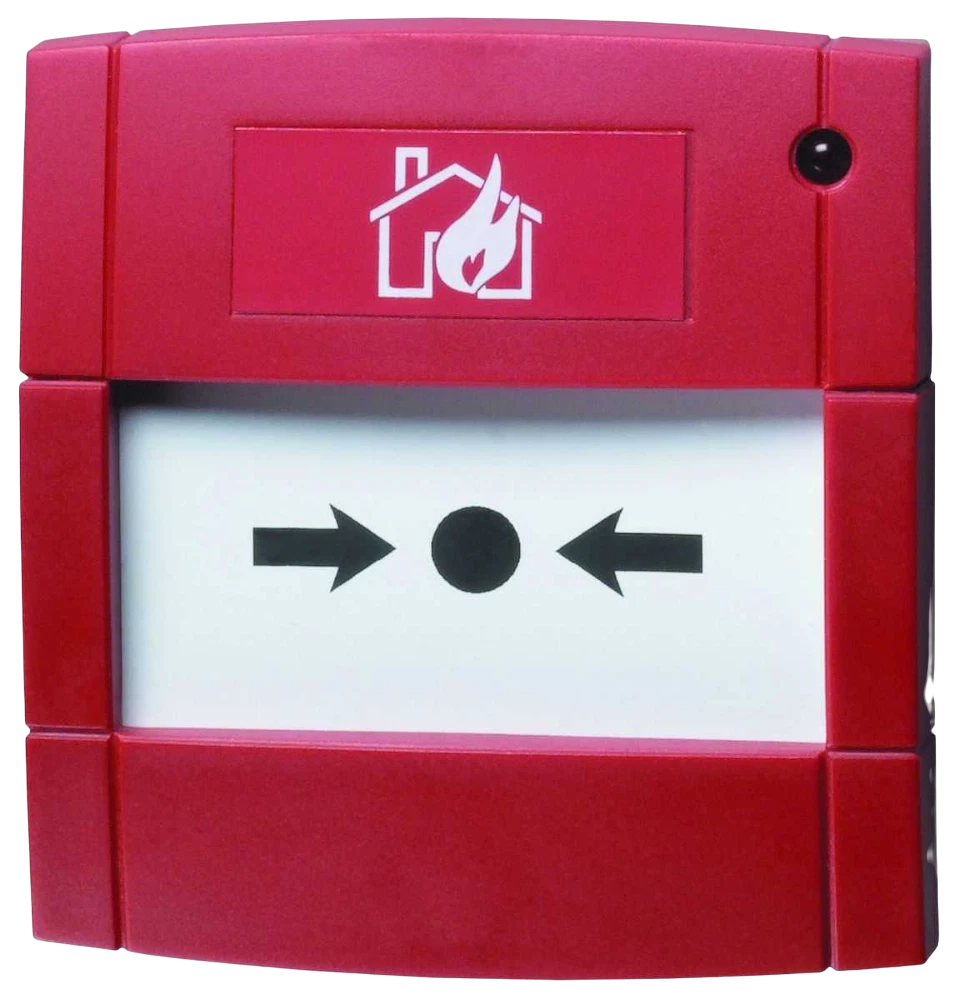

The Edwards SIGI-271 is a Signature Series intelligent break-glass manual pull station. Specifically, it packages the familiar KAC 271 break-glass call point with Signature Series addressable interface electronics in one assembly.

First, glass-break activation triggers the integrated input module. Then the module sends an alarm signal directly to the Signature Loop Controller. As a result, the panel latches the alarm condition at the station and reports the assigned device address.

Verified specifications (per Installation Sheet P/N P-047550-1725 Rev 2.0)

• Type: KAC 271 break-glass station with integrated Signature Series input module
• Factory personality code: 1 (N/O Alarm Latching, Class B) — no user addressing switches
• System controller compatibility: Signature Loop Controller required
• Operating temperature: 32 to 120 °F (0 to 49 °C)
• Operating humidity: 0 to 93 percent RH
• Storage temperature: -4 to 140 °F (-20 to 60 °C)
• Replacement break-glass insert: 271-KG1 (sold in packages of 5)
• Wiring: factory-supplied red (Data In/Out +), black (Data In -), and black/white (Data Out -) leads with spade lugs
• All wiring is supervised and power-limited

Compatible mounting

• KAC SR3T-P surface box
• KAC ETT1-P tray for flush mounting

Installation notes

The 271 ships from the factory as a complete assembly with one input module attached. Furthermore, the electronic module contains no user-serviceable parts and should not be disassembled. Before wiring, the installer should verify that all field wiring is free of opens, shorts, and ground faults. Strip 1/4 in (about 6 mm) from each wire end; exposing more wire can cause ground faults, while exposing less may create a faulty connection. Finally, address the station via the loop programming software (no DIP switches).
