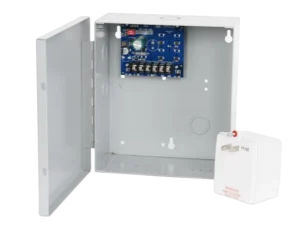

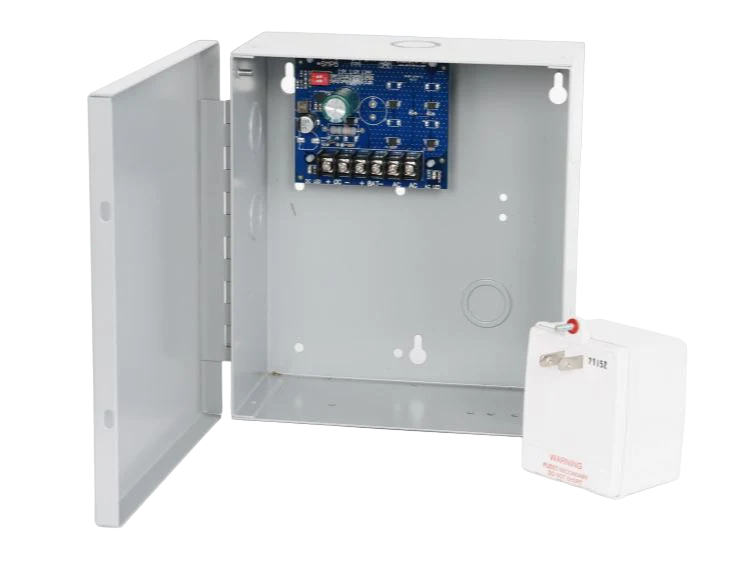

The Altronix SMP3ET is a complete power supply and charger kit. It bundles the SMP3 board with the BC100 enclosure and the TP1640 plug-in transformer.
First, the TP1640 transformer steps mains down to 16VAC at 40 VA. Then that low-voltage AC feeds the SMP3 board inside the BC100 wall-mount enclosure. As a result, the kit produces a regulated 6VDC or 12VDC output at up to 2.5A continuous.
In addition, the kit accepts one 12VDC/7AH or two 12VDC/4AH standby batteries inside the enclosure. Therefore, the unit transfers instantly to battery on AC loss and continues to deliver power without interruption.
Key Features of the Altronix SMP3ET
- Complete kit: SMP3 board, BC100 enclosure, and TP1640 transformer
- Selectable 6VDC or 12VDC regulated output
- 2.5A continuous output current
- Built-in sealed lead acid / gel battery charger (0.3A max)
- Internal battery space for 12VDC/7AH (1) or 12VDC/4AH (2) batteries
- Instantaneous failover to standby battery on AC loss
- Short-circuit and thermal overload protection
- AC input and DC output LED indicators
- Indoor wall-mount steel enclosure with knockouts
Specifications
- Input to board: 16VAC from TP1640 plug-in transformer
- Output: 6VDC or 12VDC selectable, 2.5A continuous max
- Battery charging: 0.3A max, sealed lead acid or gel
- Enclosure dimensions (H x W x D): 8.5″ x 7.5″ x 3.5″ (215.9 x 190.5 x 88.9 mm)
- Product weight: 3.3 lb (1.5 kg)
- Operating temperature: 0°C to 49°C (32°F to 120°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Relative humidity: 85% ±5%
- BTU/hr: 8 (6V), 15 (12V)
Intended Applications — Access, Security, and CCTV
Per the Altronix data sheet, the SMP3ET is intended for access control, security, and CCTV system accessories that require additional power. Therefore, it suits door strikes, maglocks, intercoms, small camera networks, and sensors. However, the SMP3ET data sheet does not list UL 864, UL 294, or NFPA 72 agency approvals. As a result, it should not be used as a fire alarm or NAC power source. For UL 864 fire-alarm NAC power, choose an Altronix model such as FireSwitch108, AL842ULADA, or AL602ULADA.
Order the Altronix SMP3ET
Life Safety Consultants stocks the complete Altronix SMP3ET kit along with compatible standby batteries. To order or to confirm fit, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 10 × 8 × 5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
