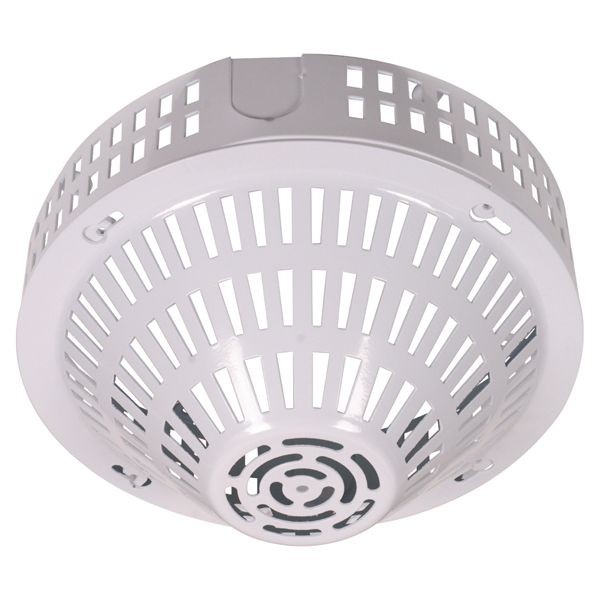

The STI STI-8230-W is a white coated steel Smoke Detector Damage Stopper® with conduit spacer. The spacer adapts the heavy-duty cover to surface-mounted smoke detectors. Also, it includes a knockout for mounting around exposed conduit.
STI builds the cover from 1.2 mm coated steel with a white finish. As a result, it blends with most ceilings while standing up to severe abuse. Furthermore, a matrix of perforations lets smoke reach the detector freely.
STI STI-8230-W Key Features
- Heavy-duty 1.2 mm coated steel construction in white
- Spacer adds 2 in to cover depth for surface-mount detectors
- Knockout for mounting around exposed conduit
- Perforation matrix admits smoke while shielding the detector
- UL Listed for use with specific smoke detectors
- Simple removal for detector servicing
- Three-year guarantee against breakage in normal use
Specifications
Assembled dimensions are 8 in H x 8 in W x 5 in D. First, confirm your detector model against STI’s listing chart before ordering.
Related Models and Accessories
For flush-mounted detectors, the STI-8200-W omits the spacer. Alternatively, the STI-8230-SS offers 304 stainless steel for hygienic environments. Optional KIT-82 tamper-resistant screws and the KIT-19038 tamper bit are available.
Order the STI-8230-W from Life Safety Consultants
Life Safety Consultants stocks STI protective covers and enclosures for contractors, facility managers, and fire alarm technicians nationwide. To order the STI-8230-W, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com for application help.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|
