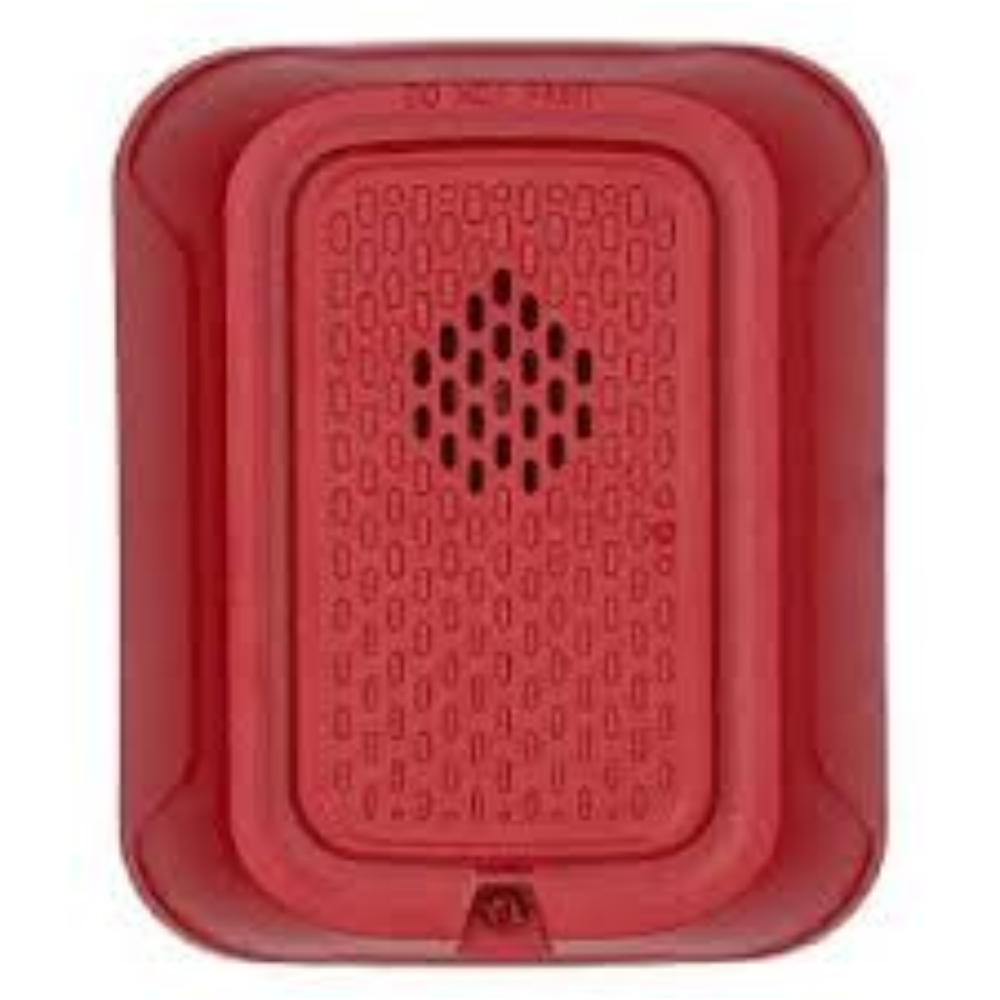

The System Sensor HRL horn is an L-Series indoor fire alarm horn in red for wall mounting. It is an audible-only appliance — there is no strobe on this model. For wall horn strobes, see the System Sensor P2RL instead.
L-Series appliances focus on fast, foolproof installation. Each horn plugs into a universal mounting plate with minimal intrusion into the back box. In addition, an onboard shorting spring lets installers verify circuit continuity before the horn is installed.
System Sensor HRL Horn Key Features
- Wall-mount indoor horn, red housing; listed for wall mounting only
- Rated at 88+ dBA at 16 volts; up to 90 dBA on 24 V high settings
- Rotary switch selects standard or 3.1 kHz tones in temporal, non-temporal, or coded patterns
- Two volume selections optimize current draw per circuit
- Automatic 12- or 24-volt operation; 8-17.5 V and 16-33 V ranges
- Electrically compatible with SpectrAlert and SpectrAlert Advance devices; works with the MDL3 sync module
Specifications
The horn measures 5.6 in L x 4.7 in W x 1.25 in D. Maximum UL current draw is 44 mA at 16-33 VDC on the temporal high setting, or 54 mA on FWR power. Operating temperature is 32°F to 120°F at 10-93% humidity, non-condensing. Also, it mounts to 2 x 4-inch, 4 x 4 x 1.5-inch, 4-inch octagon, or double-gang back boxes. The device is UL Listed and FM Approved.
Order the System Sensor HRL Horn from Life Safety Consultants
Life Safety Consultants stocks L-Series horns and strobes for fire alarm contractors nationwide. To order the HRL, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com for application help.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 6.75 × 5.75 × 2.75 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Strobe |
