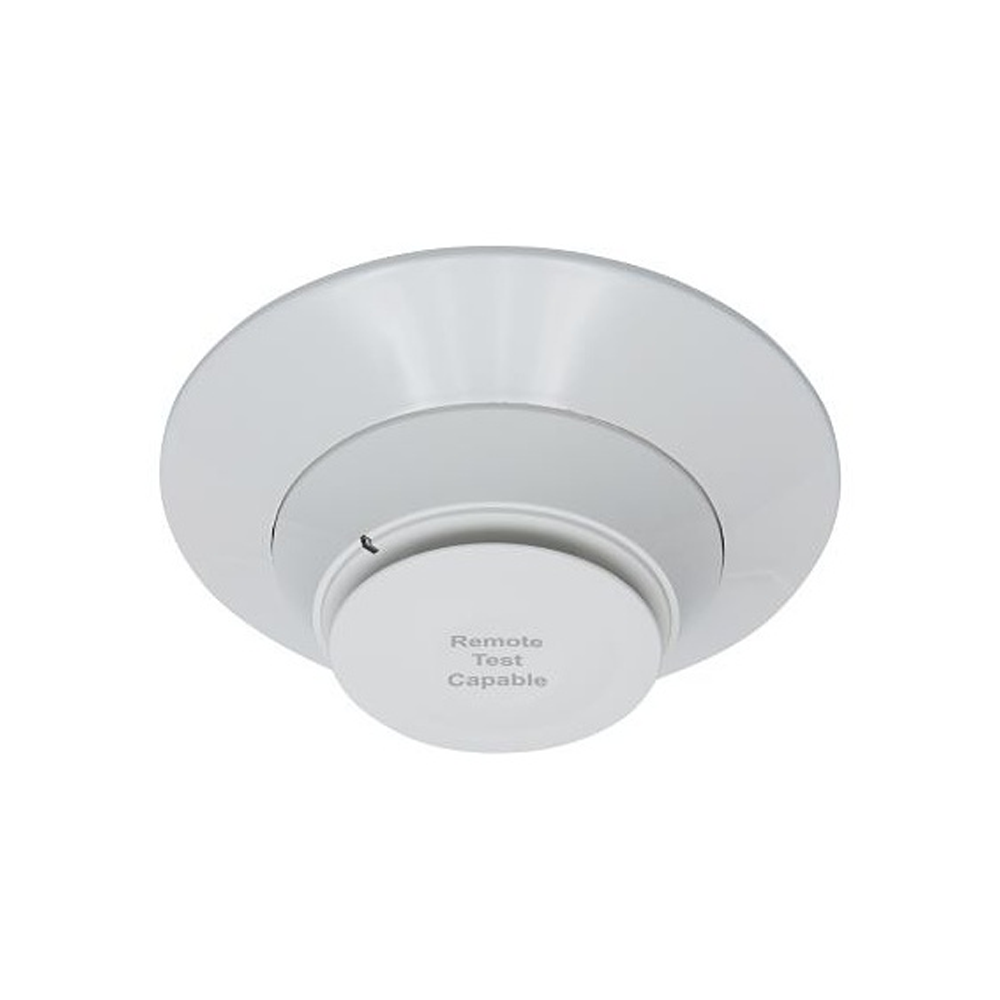

SYSTEM SENSOR (SS-PHOTO-R) SS-Series Photoelectric Smoke Detector f

The System Sensor SS-PHOTO-R is an intelligent, addressable photoelectric smoke detector. First, its redesigned optical chamber senses smoke from a wide range of fire sources. Then, point ID and rotary address switches report each detector’s exact location. As a result, the panel pinpoints alarms and monitors sensitivity continuously. The “-R” version is also remote-test capable for DNR(W) duct smoke detectors.

System Sensor SS-PHOTO-R features

The SS-PHOTO-R supports current SK, LiteSpeed, and SS Protocol systems. In addition, dual LEDs provide 360-degree visibility for status and alarm. Then, programmable sensitivity lets technicians tune the detector to its environment. Also, low standby current eases loop power planning. Furthermore, the slim profile and plug-in base simplify installation and service. Because it is remote-test capable, it pairs with DNR(W) duct housings.

• Intelligent addressable photoelectric smoke detector
• Remote-test capable for DNR(W) duct smoke detectors
• Rotary address switches with point ID
• Dual LEDs for 360° visibility
• Programmable sensitivity via the control panel
• Supports SK, LiteSpeed, and SS Protocol

Specifications

• Voltage range: 15 to 32 VDC peak
• Operating current at 24 VDC: 200 µA
• Maximum alarm current: 2 mA at 24 VDC
• Operating temperature: 32°F to 122°F (0°C to 50°C); −4°F to 158°F in duct use
• Humidity: 10% to 93% non-condensing
• Sensitivity: 2.86–5.0%/ft (open area)
• Dimensions: 2.0″ H; 4.1″ diameter in B501 base, 6.2″ in B300-6 base
• Listing: UL 268

The SS-PHOTO-R installs in B501 4-inch or B300-6 6-inch bases, ordered separately. However, confirm panel protocol compatibility before ordering. Therefore, check the addressable detector compatibility chart for your control panel.
