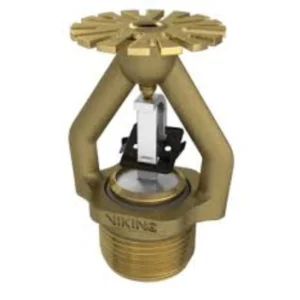

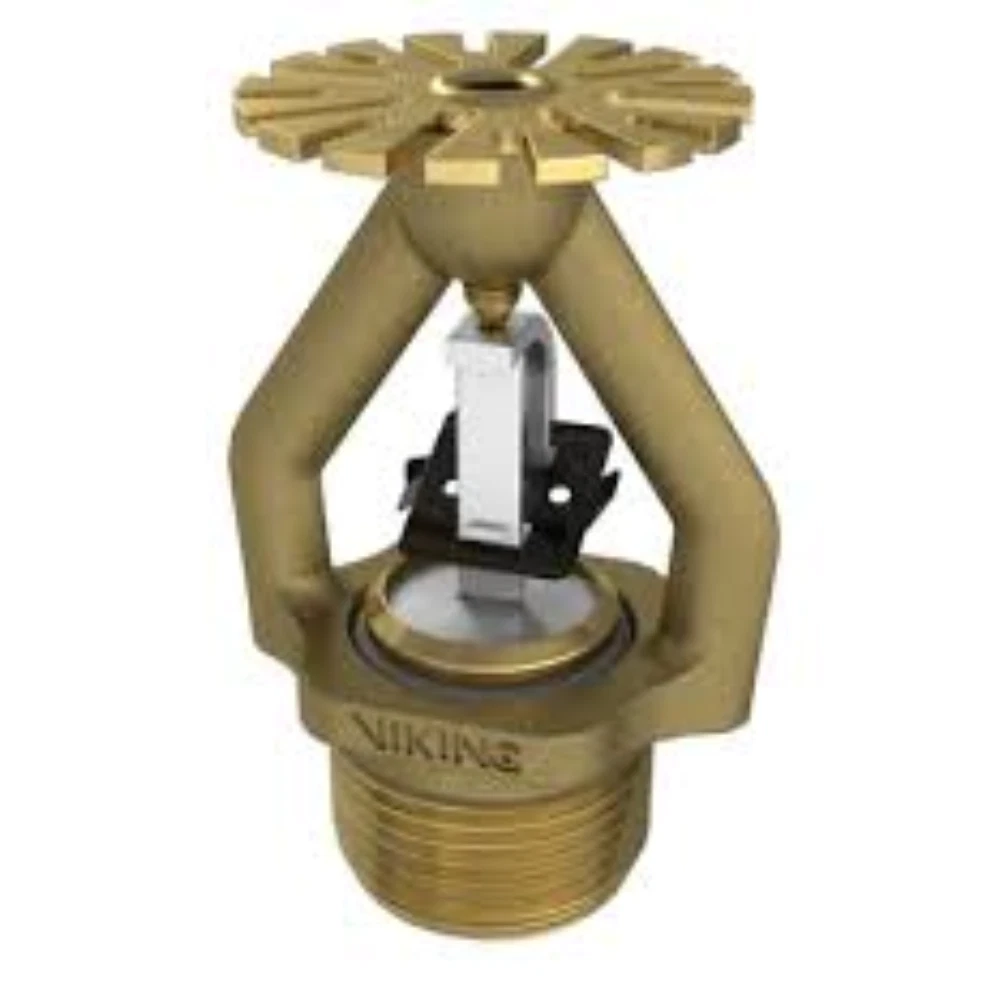

Viking VK510 ESFR Pendent Sprinkler
The Viking VK510 is an ESFR pendent fire sprinkler with a 25.2 K-factor. ESFR means Early Suppression, Fast Response. In addition, it carries a brass finish. The unit releases at 165°F (74°C).
This sprinkler protects high-challenge storage. Therefore, it suits warehouses, distribution centers, and high-rack storage. The large K25.2 orifice delivers ESFR performance at lower end-head pressures. As a result, it can simplify hydraulic design versus ESFR K14 sprinklers.
Viking VK510 Specifications
- SIN: VK510
- Type: ESFR pendent (storage)
- K-factor: 25.2
- Thread: 1″ NPT
- Temperature rating: 165°F (74°C)
- Finish: brass
- Listings: cULus Listed, FM Approved
First, confirm your storage design calls for ESFR K25.2. Then verify the 1″ NPT thread and temperature rating. Also follow NFPA 13 for ESFR spacing and pressure. Life Safety Consultants can help you order the correct VK510.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 4 × 2 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
