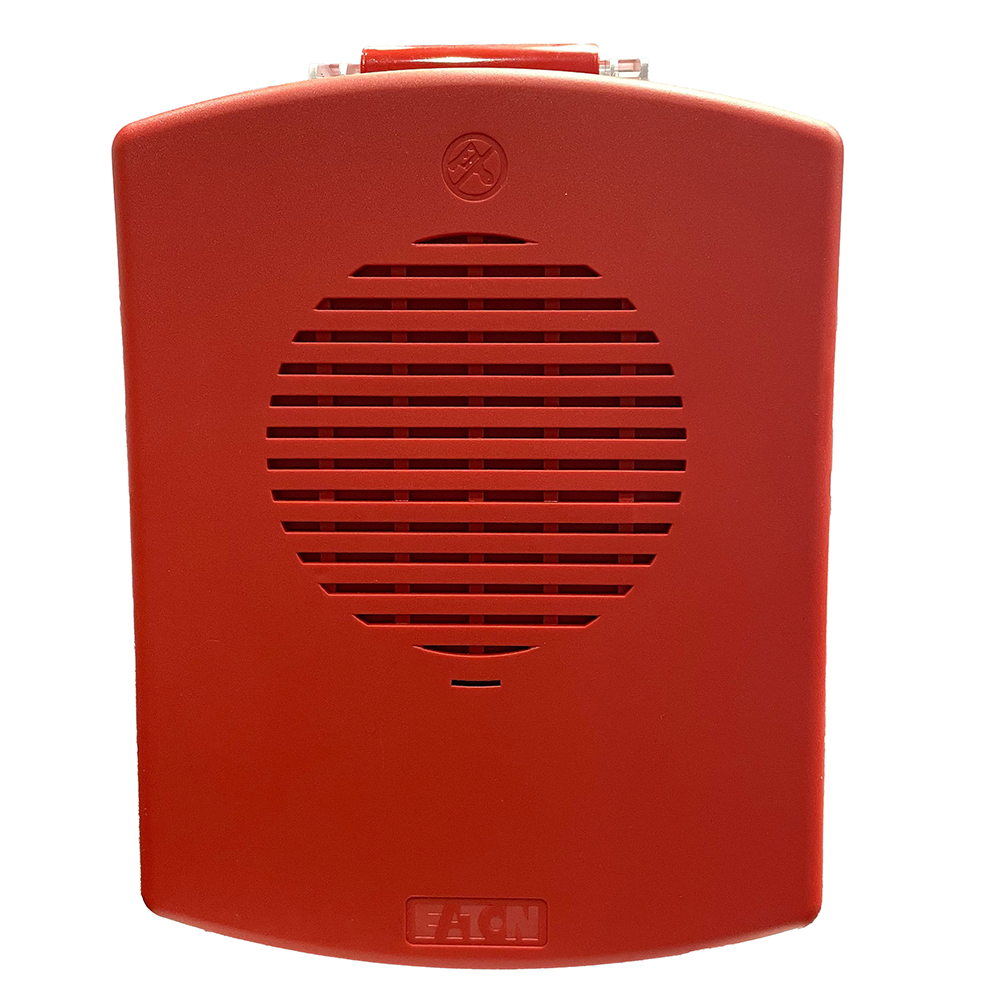

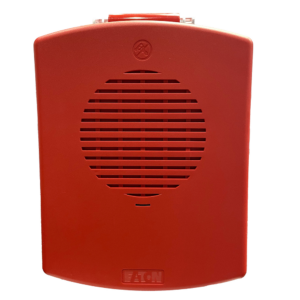

The Wheelock EL4XHN-NR is a NEMA 4X rated outdoor horn. It belongs to Eaton’s Eluxa weatherproof notification line. Specifically, this model provides audible-only signaling in a corrosion-resistant enclosure. As a result, it holds up in washdown and coastal environments. The red housing fits commercial fire alarm systems built to NFPA 72.
Heavy-Duty Weatherproofing
First, the NEMA 4X / IP66 enclosure resists corrosion, dust, and direct water jets. Therefore, it performs where standard outdoor devices would fail. In addition, the unit operates from -40°F to 150°F. The UV-stabilized engineered plastic also withstands sun exposure.
Audible Performance
The horn provides field-selectable tones for flexible signaling. Installers choose the tone on site, so one model covers many jobs. Furthermore, the appliance runs on 24 VDC. It mounts to the matching EL4XBB surface back box.
Key Features
- NEMA 4X / IP66 enclosure for corrosive, washdown, and coastal sites
- Field-selectable tones
- Audible-only appliance (no strobe)
- 24 VDC operation
- Operating range -40°F to 150°F
- Red UV-stabilized housing; wall or ceiling mount
- Pairs with the EL4XBB surface back box
- UL 464 listed for audible signaling
Order the Wheelock EL4XHN-NR or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification and signaling devices. To order the Wheelock EL4XHN-NR or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6.5 × 5.5 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Horn / Strobe |
