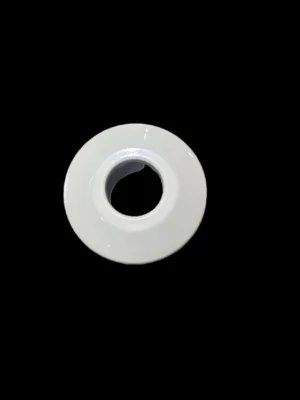

The Tyco 1175 is a Style 65 one-piece flush escutcheon for fire sprinklers. Specifically, it is the 3/4″ NPT version in a Signal White (RAL9003) finish. First, it slips over the sprinkler before final tightening. Then, it conceals the clearance hole around the pipe drop.
Installers use this escutcheon with pendent and horizontal sidewall sprinklers. In addition, it suits systems where piping runs above a ceiling or behind a wall. As a result, the finished installation looks clean and professional.
Why choose the Tyco 1175 escutcheon
This is a flush, one-piece, non-adjustable plate. Therefore, the connecting pipe must be cut so the seating surface sits flush with the ceiling or wall. Furthermore, the carbon-steel construction holds its finish in service. Also, the white color blends with most ceilings.
Key features
- Style 65 one-piece flush escutcheon
- 3/4″ NPT size
- Signal White (RAL9003) finish
- Carbon steel construction
- For pendent and horizontal sidewall automatic sprinklers
- Conceals the pipe clearance hole at the ceiling or wall
Specifications
- Type: Style 65 one-piece flush escutcheon (non-adjustable)
- Thread size: 3/4″ NPT opening
- Finish: Signal White (RAL9003)
- Material: carbon steel
- Outside diameter: 2-13/16″ (71.4 mm)
- Projection from seating surface: 1/2″ (12.7 mm)
- Part number: 1175
Note one approval detail. Under NFPA 13, listings are not required for metallic escutcheons in non-recessed applications. However, always install and maintain it per NFPA 13 and NFPA 25.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1 × 3 × 3 in |
| Condition | New |
| Manufacturers | Tyco |
| Part Type | Replacement Part |
