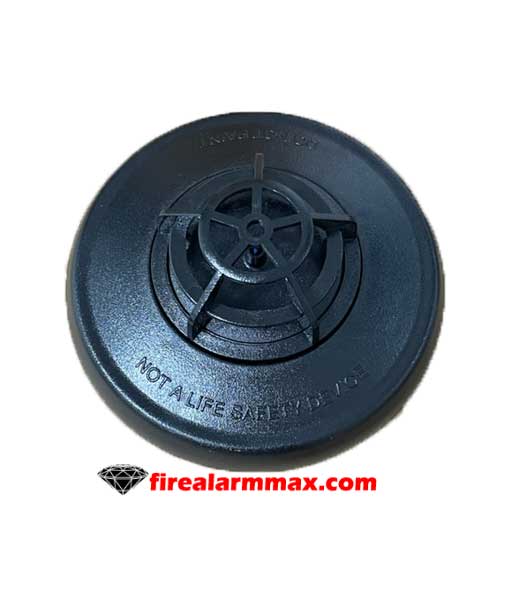

The Simplex 4098-9778 Addressable Thermal Detector Base represents advanced heat detection technology engineered for comprehensive commercial fire protection environments. Designed specifically for integration with sophisticated addressable fire alarm control panels, this detector base provides precise thermal monitoring across diverse commercial and industrial applications, from manufacturing facilities and warehouses to institutional and office complexes.
Constructed with high-performance black thermoplastic housing, the 4098-9778 detector base delivers reliable heat sensing capabilities that meet rigorous NFPA 72 National Fire Alarm and Signaling Code requirements. Its advanced design enables seamless communication within Simplex addressable fire alarm networks, offering precise thermal event detection and rapid signal transmission to central monitoring systems.
Key Features
- Compatible with Simplex TrueSite addressable fire alarm panels and control systems
- Engineered for commercial and industrial thermal detection applications
- Fixed temperature heat sensing with field-programmable sensitivity settings
- UL 268 and CSFM listed for comprehensive fire safety compliance
- Low-profile design facilitating streamlined mounting in suspended ceilings and architectural spaces
- Operating temperature range from 32°F to 100°F with minimal environmental drift
Specifications
- Voltage: 24 VDC nominal
- Operating Current: 200 µA typical standby
- Color: Matte black
- Material: High-impact thermoplastic
- Mounting: Standard 4-inch electrical box compatible
Recommended installation environments include commercial office buildings, manufacturing facilities, data centers, healthcare institutions, and other critical infrastructure requiring precision thermal event detection. The 4098-9778 thermal detector base provides reliable performance in conjunction with HVAC systems, electrical rooms, storage areas, and other temperature-sensitive zones requiring advanced fire monitoring capabilities.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 5 × 4.4 × 2.4 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Detector Base |
