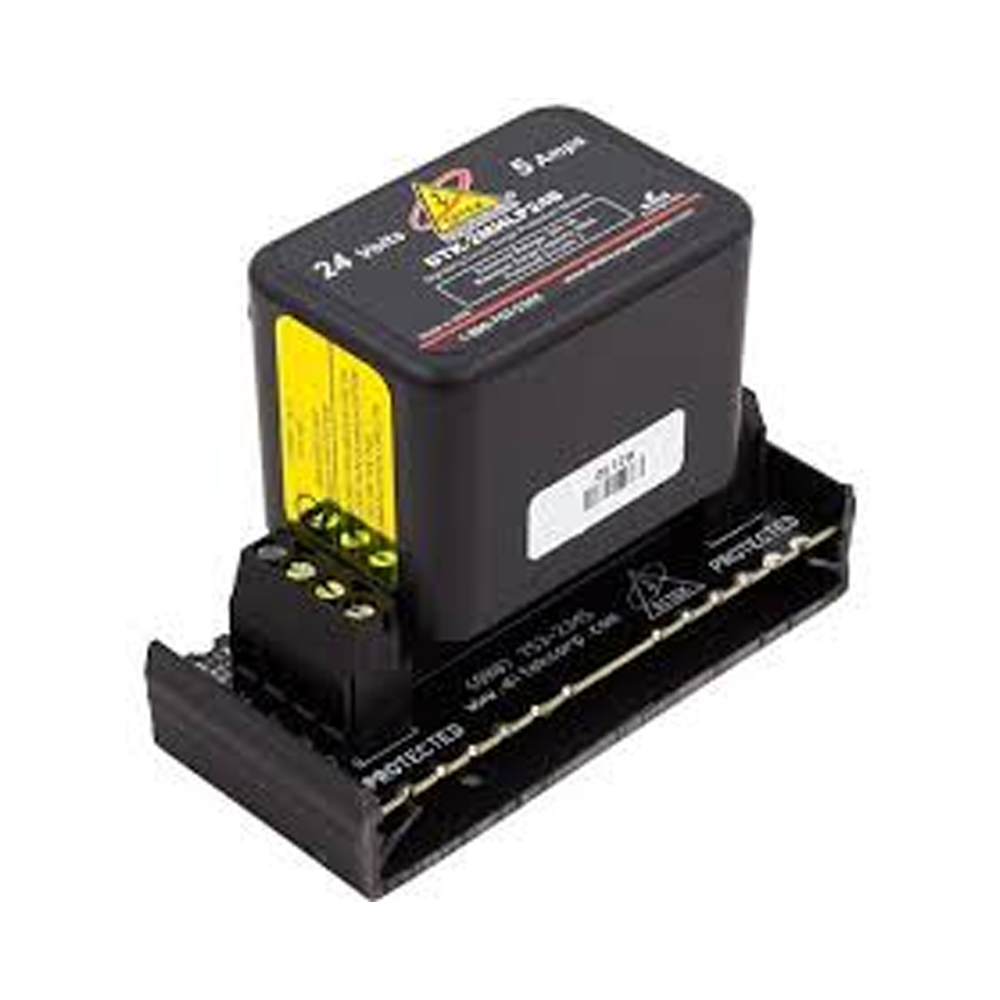

The Ditek DTK-2MHLP24BWB is a 24V hybrid surge suppression module with a hardwired base. Specifically, it protects two circuit pairs per module using multi-stage SAD technology.
First, wire the protected signaling pairs through the hardwired base terminals. Then, the multi-stage hybrid stage clamps transients on each pair. As a result, the DTK-2MHLP24BWB delivers fast, low-clamping protection for sensitive low-voltage circuits.
Ditek DTK-2MHLP24BWB Applications
The 24V rating suits fire-alarm NAC, SLC, and IDC loops. In addition, it protects 4–20 mA current loops and burglar-alarm panel inputs. Furthermore, the hardwired multi-base design lets installers gang up to ten pairs with a common ground.
Verified Specifications
- Operating voltage: 24V (suitable for AC or DC circuits)
- Pairs protected per module: 2
- Suppression technology: multi-stage hybrid using SAD components
- Maximum line current: 5 A
- Maximum surge current: 20 kA per pair
- Dimensions: 1.9″ H × 1.4″ W × 2.1″ D
- Weight: 1.20 oz
- Housing: ABS plastic
- Field replaceable
Application Notes
Module agency listings flow through the host panel installation, not through the module itself. However, choose the module voltage to match the protected circuit. Therefore, do not install a 24V module on a 12V or 48V loop.
Order or Get Application Help
To order the Ditek DTK-2MHLP24BWB or confirm matching base/module pairs, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your loop voltage.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 3.5 × 2.75 × 1.75 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Replacement Part |
