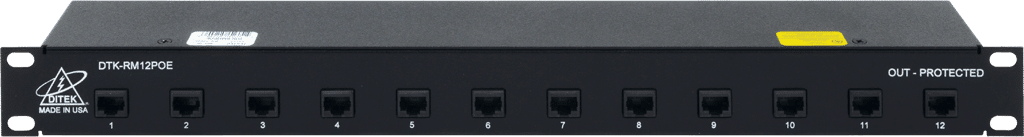

The Ditek DTK-RM12POE is a 12-channel, 1U rack-mount surge protector for Ethernet and PoE circuits. Specifically, it protects up to twelve shielded RJ45 cable runs in a single rack unit.
First, terminate the incoming Ethernet cables on the shielded RJ45 IN ports. Then, patch the protected outputs to the switch, NVR, or VoIP equipment. As a result, the DTK-RM12POE shields network electronics from transient surges on data and power pairs.
Ditek DTK-RM12POE Performance
The device passes data speeds up to 10GbE. In addition, it carries over 1 A on the power pairs, qualifying as PoE Plus and HiPoE ready. Furthermore, the SAD and GDT hybrid suppression handles the high-current power circuits cleanly.
Verified Specifications
- Configuration: 12 channels, 1U rack mount
- Connectors: shielded RJ45 in/out
- Data rate: up to 10GbE
- Cabling compatibility: CAT5e, CAT6, CAT6A
- PoE compatibility: PoE Plus and HiPoE ready
- Per-channel power: over 1 A capable
- Suppression technology: SAD + GDT hybrid
- Field-replaceable surge modules per channel
Typical Application
Use the DTK-RM12POE at the network rack to protect downstream switches and PoE devices. Specifically, it suits IP camera systems, VoIP installations, and access-control head-ends. However, this is a network SPD, not a fire-alarm device.
Order or Get Application Help
To order the Ditek DTK-RM12POE or confirm cable compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your port count.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 20 × 4.25 × 2.5 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Replacement Part |
