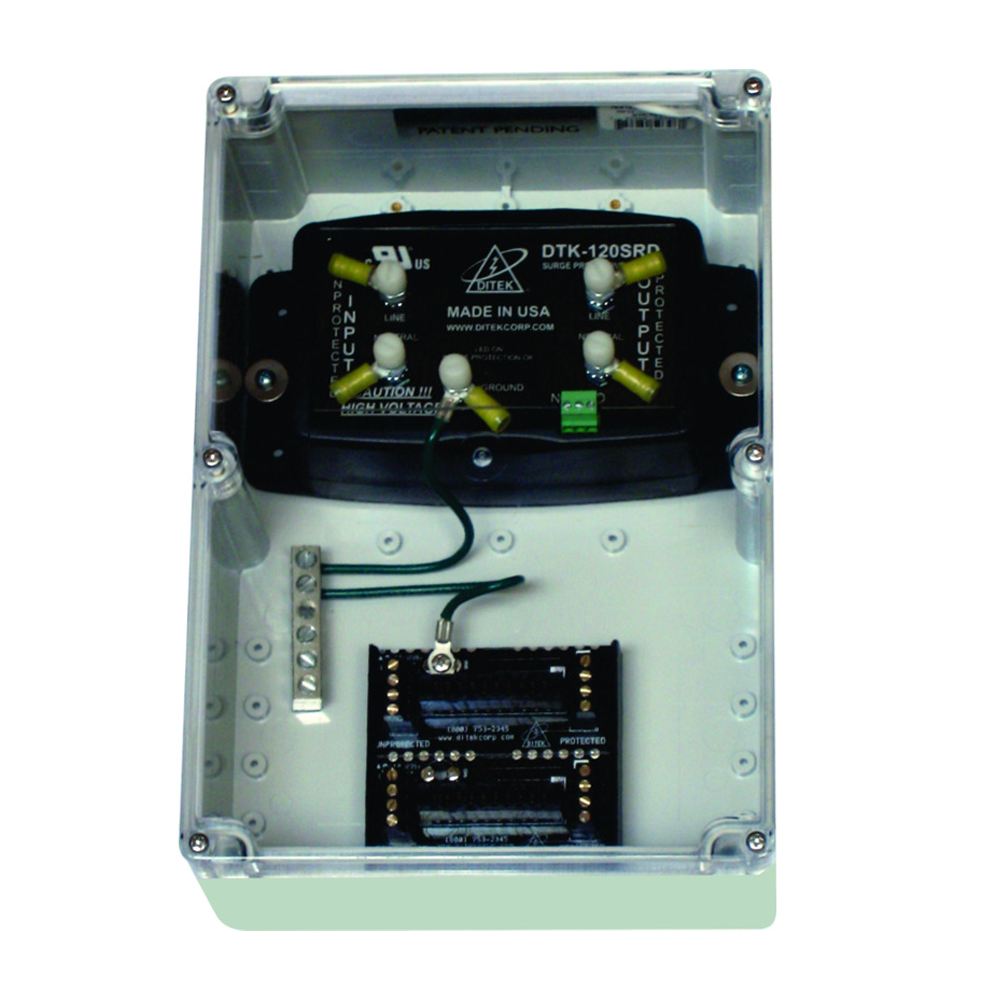

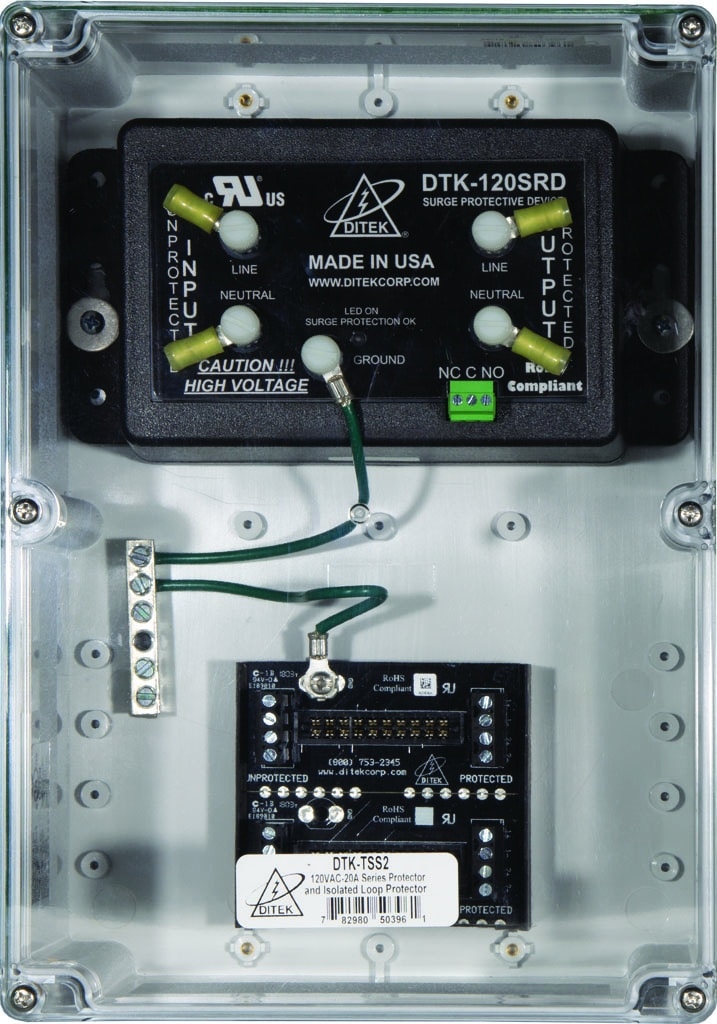

The Ditek DTK-TSS2 Total Surge Solution protects 120VAC service plus four pairs of signaling circuits. Specifically, it bundles a DTK-120SRD AC suppressor with a 2-position low-voltage base in a NEMA 4X outdoor enclosure.
First, terminate the 120VAC service through the DTK-120SRD section. Then, populate the 2-position base with 2MHLP modules sized per circuit voltage. As a result, the DTK-TSS2 protects power, SLC, IDC/PIV, NAC, or dialer pairs at one entry point.
Ditek DTK-TSS2 AC Power Section
The AC section is UL 1449 3rd Edition listed and cUL approved. In addition, it provides Form C dry contacts for remote monitoring of protection status. Furthermore, the 54 kA peak surge rating handles harsh outdoor service environments.
Verified Specifications
- AC operating voltage: 120VAC, 20A
- AC MCOV: 150VAC
- AC peak surge current: 54,000 A
- AC listings: UL 1449 3rd Edition, cUL approved
- AC component: includes one DTK-120SRD with Form C dry contacts
- Low-voltage section: 2-position hardwired base for 2MHLP modules
- Signaling capacity: up to 4 pairs (2 per 2MHLP module)
- Compatible circuit types: SLC, IDC/PIV, NAC, dialer
- Field-replaceable surge modules throughout
- Enclosure: NEMA 4X, 10″ × 7″ × 4″ (W × D × H)
- Operating temperature: -40°F to 175°F
Typical Application
Use the DTK-TSS2 at the entry point of an outdoor or lightning-exposed fire alarm installation. However, 2MHLP low-voltage modules are sold separately. Therefore, order modules sized for each protected circuit voltage.
Order or Get Application Help
To order the Ditek DTK-TSS2, modules, or verify circuit voltages, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com with your circuit list.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10.5 × 7.5 × 4 in |
| Condition | New |
| Manufacturers | Ditek |
| Part Type | Module |
