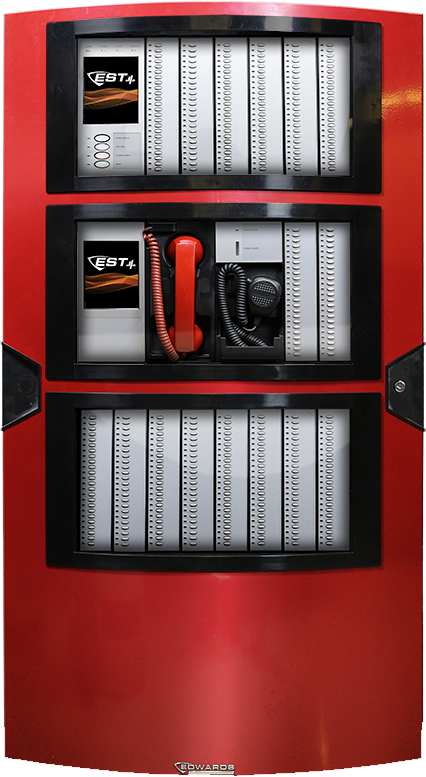

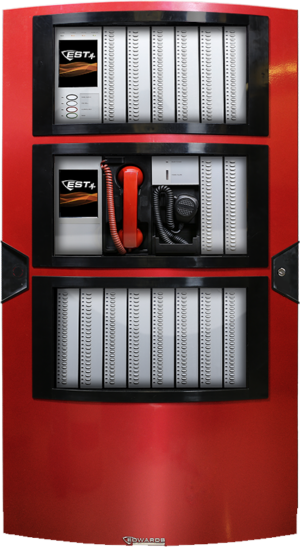

The Edwards 4-CPUGRPH Graphic Annunciator Central Processor Module represents advanced fire alarm system visualization technology designed for comprehensive building emergency management. This sophisticated central processor enables detailed graphical representation of complex fire detection and alarm network configurations, providing facility managers and first responders with critical real-time system status information.
Engineered for integration with addressable fire alarm panels in large commercial, institutional, and industrial environments, the 4-CPUGRPH delivers sophisticated monitoring capabilities across multi-zone installations. Its robust design supports complex fire detection networks, translating technical alarm data into intuitive visual representations that facilitate rapid emergency response and precise zone identification.
Key Features
- High-resolution graphical display supporting multiple building floor plans and zone mapping
- Compatible with Edwards EST fire alarm control panels and network architectures
- Advanced microprocessor-based architecture with robust communication protocols
- Configurable LED indicators for comprehensive system status reporting
- UL 864 and NFPA 72 compliant for mission-critical life safety applications
- Supports up to 16 independent graphical zones with real-time status tracking
Technical Specifications
- Operating Voltage: 24VDC nominal
- Current Draw: 150mA maximum
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
- Dimensions: 8.5″ x 6.25″ x 2.25″ (approximate)
Typical installation scenarios include large commercial office complexes, healthcare facilities, educational campuses, and multi-story industrial environments requiring comprehensive fire alarm monitoring and precise emergency response capabilities. The 4-CPUGRPH integrates seamlessly with existing Edwards EST fire alarm infrastructure, providing enhanced situational awareness for facility safety personnel.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 3 × 4 × 3 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Annunciator |
